Click External Fonts to make the Properties button available. Click Properties to open the HP Font
Installer dialog box, which is shown in the following figure.

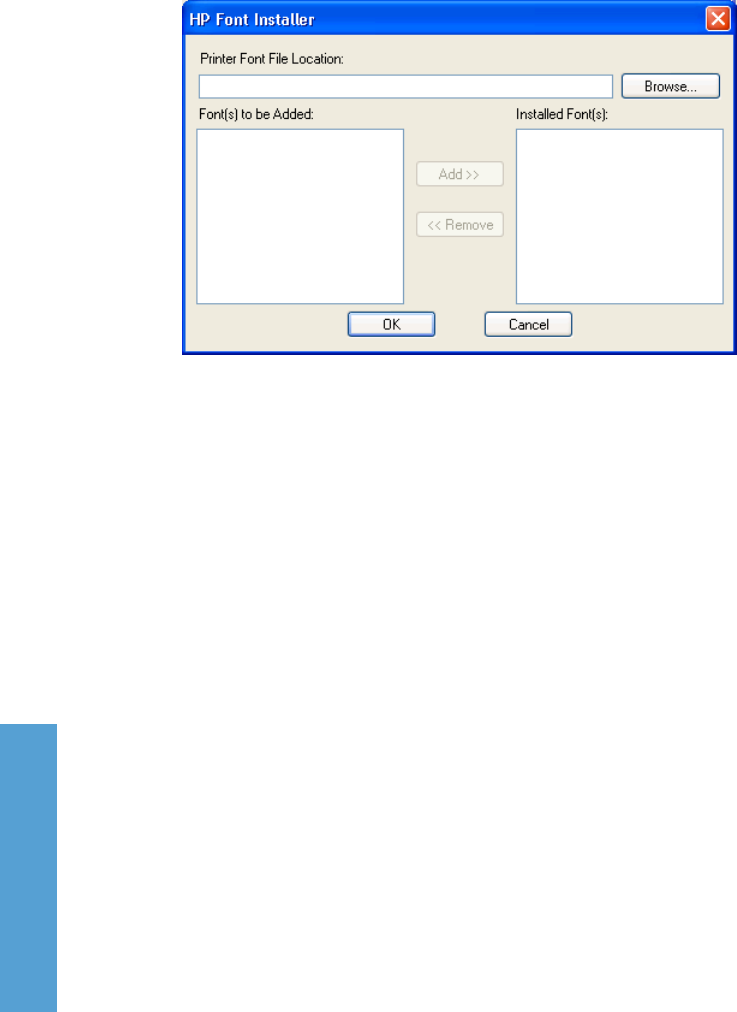

Figure 4-22 HP Font Installer dialog box
Installing external fonts
Follow these steps to install external fonts.
1. In Windows Vista, click the Start button, click Control Panel, click Hardware and Sound, and
then click Printers.
In Windows XP and Windows Server 2003, click Start, click Settings, and then click Printers and
Faxes.
In Windows Server 2008, click Start, click Control Panel, and then open the Printers folder.
In Windows 2000 Service Pack 3, click Start, click Settings, and then click Printers.
2. Right-click the name of the product.
3. Click Properties.
4. Click the Device Settings tab.
5. Click the External Fonts option. The Properties button appears.
6. Click Properties. The HP Font Installer dialog box appears.
7. Type the name and path of the font metric file in the Printer Font File Location: text box, or click
Browse... to locate the file on the computer. The font file names appear in the Font(s) to be
Added: window.
8. Select the fonts that you want to add, and then click Add. The fonts are installed and the file names
appear in the Installed Font(s): window.
9. Click OK to close the HP Font Installer dialog box.
160 Chapter 4 HP PCL 6 Print Driver for Windows ENWW
