HP LaserJet P3010 Series - Software Technical Reference

Watermarks are applied to logical pages. For example, when Pages per sheet: is set to 4 and First
page only is turned off, four watermarks appear on the physical page (one on each logical page).
Click Edit, and the Watermark Details dialog box appears.

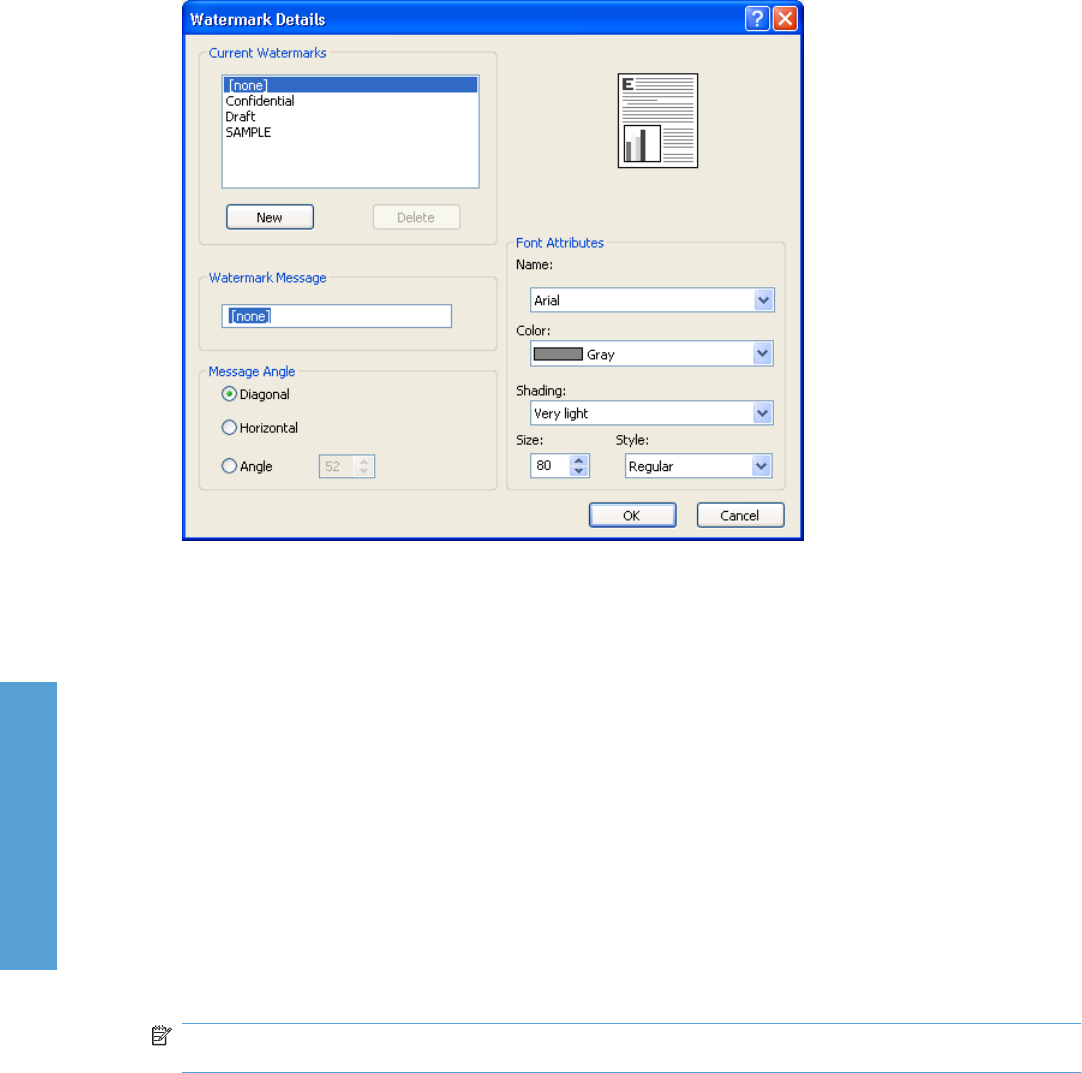

Figure 4-13 Watermark Details dialog box
The dialog box shows a preview image and provides options for creating a new watermark and
controlling the message angle and font attributes.
Click OK to accept all of the changes that are made in the Watermark Details dialog box. However,
clicking Cancel does not cancel all of the changes. If you make changes to a watermark and then select
a different watermark or click New, all of the changes are saved, and only the current, unsaved changes
can be canceled.
Current Watermarks
The Current Watermarks group box contains a list of available watermarks, both predefined
watermarks that are available in the driver and any new watermarks that you have created.
To create a new watermark, click New. The new watermark appears in the Current Watermarks list
and in the Watermark Message edit box as "Untitled" until you type a new name in the Watermark
Message edit box. The new name then appears in the Current Watermarks group box, in the
Watermark Details dialog box, and in the Watermarks group box on the Effects tab.
To delete a watermark, select the watermark in the Current Watermarks list and click Delete. At the
warning that appears, click Cancel to keep the watermark, or click OK to delete it.
NOTE: When you reach the limit of 30 watermarks in the Current Watermarks list at one time, the
New button is disabled.
To edit an existing watermark, select the watermark in the Current Watermarks list. If you change the
Watermark Message for that watermark, you are, in effect, creating a new watermark.
