HP LaserJet M2727 MFP Series – Maintenance

Development Company, L.P.

www.hp.com

Fill Paper Trays

How do I?

Steps to perform

Load paper and print media

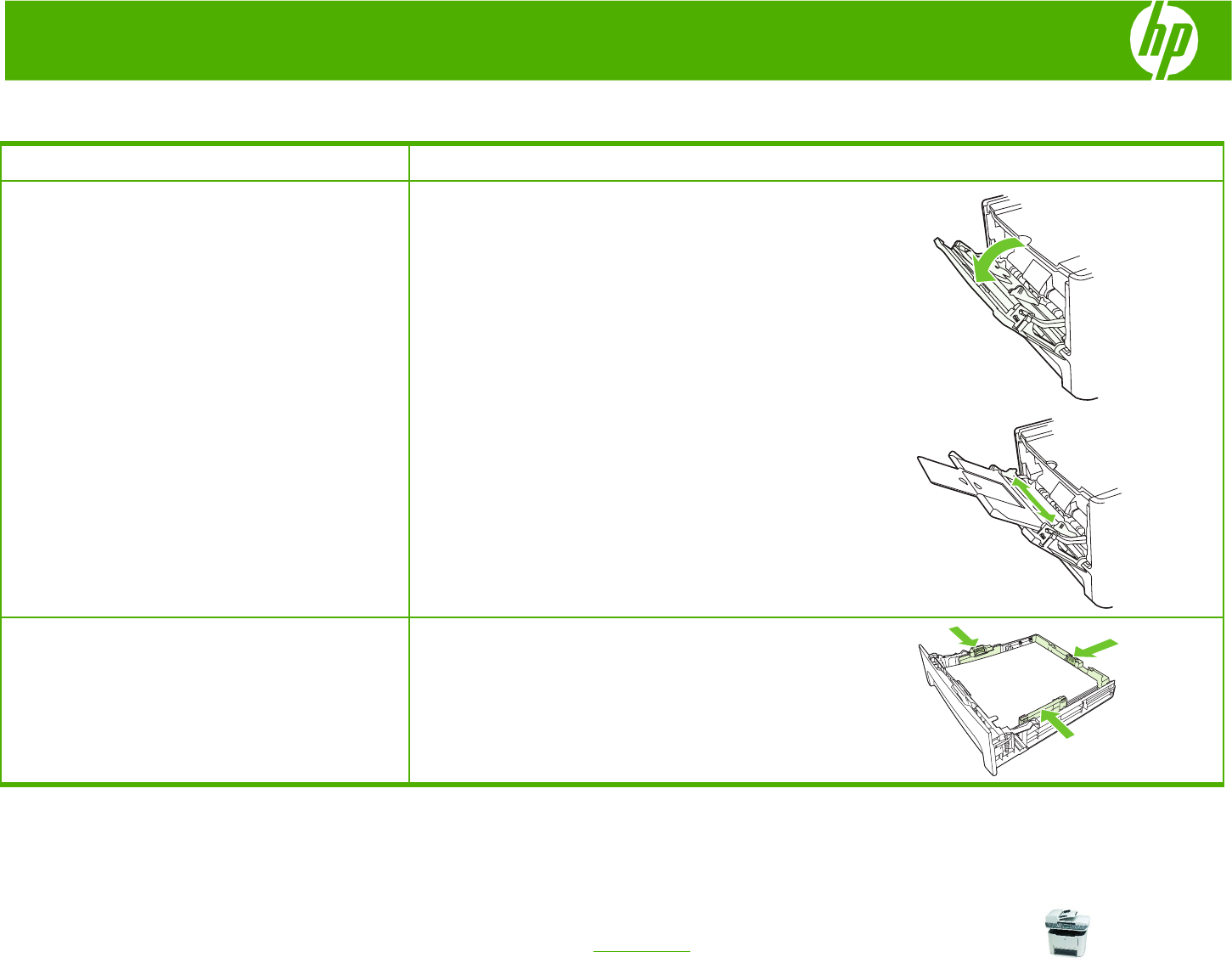

Tray 1

1 Tray 1 is accessed from the front of the product. Tray

1 holds up to 50 sheets of 75 g/m

(20 lb) media or

five envelopes, ten transparencies, or ten cards. You

can use tray 1 to print the first page on media different

from the remainder of the document.

2 Media guides ensure that the media is correctly fed

into the product and that the print is not skewed

(crooked on the media). When loading media, adjust

the media guides to match the width of the media that

you are using.

Load paper and print media

Tray 2 or 3

1 Load media with the top forward and the side to be

printed on facing down. Media guides ensure that the

media feeds correctly into the product and that the

print is not skewed. Tray 2 has side and rear media

guides.

Summary of content (12 pages)

PAGE 1
HP LaserJet M2727 MFP Series – Maintenance Fill Paper Trays How do I? Load paper and print media Tray 1 Steps to perform 1 Tray 1 is accessed from the front of the product. Tray 2 1 holds up to 50 sheets of 75 g/m (20 lb) media or five envelopes, ten transparencies, or ten cards. You can use tray 1 to print the first page on media different from the remainder of the document. 2 Media guides ensure that the media is correctly fed into the product and that the print is not skewed (crooked on the media).
PAGE 2
HP LaserJet M2727 MFP Series – Maintenance Replace print cartridges How do I? Replace print cartridges Steps to perform 1 Open the print-cartridge door. 2 Grasp the handle on the print cartridge and then pull the cartridge straight out to remove it. See the recycling information inside the print cartridge box. 3 Remove the new print cartridge from its packaging; remove the orange cover from the print cartridge, and then pull the orange tab straight out to remove the sealing tape.
PAGE 3
HP LaserJet M2727 MFP Series – Maintenance Replenish staples How do I? Load staples Steps to perform 1 Open the stapler door. 2 If you are replacing a staple cassette remove the staple cassette from the product. 3 Insert a new staple cassette into the opening inside the staple door. 4 Close the stapler door. 1 © 2007 Copyright Hewlett-Packard Development Company, L.P. www.hp.
PAGE 4
HP LaserJet M2727 MFP Series – Clear Jams How do I? Clear jams from the document feeder Steps to perform 1 Open the document feeder cover. 2 Remove the jam cleanout part. Using both hands, lift up on the two handles until the part unsnaps. Rotate and lift out the cleanout part and set it aside. 3 Lifting the green lever, rotate the pick mechanism until it stays open. 4 Gently try to remove the page without tearing it. If you feel resistance, go to the next step.
PAGE 5
HP LaserJet M2727 MFP Series – Clear Jams How do I? Clear jams from the document feeder (continued) Steps to perform 6 When the media is free, gently pull it out in the direction shown. 7 Close the lid to the flatbed scanner. 8 Lower the green lever. 9 Reinstall the cleanout part by inserting it as shown. Push down on the two tabs until the part snaps into place. Install the cleanout part correctly, because future jamming might occur if the cleanout part is not replaced correctly.
PAGE 6
HP LaserJet M2727 MFP Series – Clear Jams How do I? Clear jams from the input-tray areas CAUTION: Do not use sharp objects, such as tweezers or needle-nose pliers, to remove jams. Damage caused by sharp objects will not be covered by the warranty. When removing jammed media, pull the jammed media straight away from the product. Pulling jammed media out of the product at an angle can damage the product. Steps to perform 1 Open the rear output door. 2 Rotate the green pressure release levers downward.
PAGE 7
HP LaserJet M2727 MFP Series – Clear Jams How do I? Clear jams from the input-tray areas (continued) Steps to perform 6 Open tray 2 and tray 3. 7 With both hands, grasp the side of the media that is most visible (this includes the middle), and carefully pull it free from the product. 8 If no media is visible, open the print-cartridge door, remove the print cartridge, and rotate the upper media guide. Carefully pull the media up and out of the product. 9 Close tray 2 and optional tray 3.
PAGE 8
HP LaserJet M2727 MFP Series – Clear Jams Clear jams from the top (face-down) output bin Clear jams from the rear (face-up) outputbin 1 With both hands, grasp the side of the media that is most visible (this includes the middle), and carefully pull it free from the product. 1 Open the straight-through output door. 2 Pull down the green pressure-release levers. 3 With both hands, grasp the side of the media that is most visible (this includes the middle), and carefully pull it free from the printer.
PAGE 9
HP LaserJet M2727 MFP Series – Clear Jams How do I? Steps to perform Clear jams from the print-cartridge area 1 Open the print-cartridge door, and remove the print cartridge. CAUTION: To prevent damage to the print cartridge, minimize its exposure to direct light. 2 On the product, open the rear output door, and then rotate the green pressure-release levers downward.
PAGE 10
HP LaserJet M2727 MFP Series – Clear Jams How do I? Clear jams from the duplexer CAUTION: Do not use sharp objects, such as tweezers or needle-nose pliers, to remove jams. Damage caused by sharp objects will not be covered by the warranty. When removing jammed media, pull the jammed media straight away from the product. Pulling jammed media out of the product at an angle can damage the product. Steps to perform 1 Open the rear output door. 2 Rotate the green pressure release levers downward.
PAGE 11
HP LaserJet M2727 MFP Series – Clear Jams How do I? Clear jams from the duplexer (continued) Steps to perform 6 Close the automatic two-sided path door. 7 Reinsert tray 2. 8 Close the rear output bin, and then open the automatic two-sided path door on the back of the product. 9 With both hands, grasp the side of the media that is most visible (this includes the middle), and carefully pull it free from the product. 10 Close the automatic two-sided path door.
PAGE 12
HP LaserJet M2727 MFP Series – Clear Jams How do I? Clear jams from the convenience stapler (HP LaserJet M2727nfs mfp only) Steps to perform 1 Turn off the HP LaserJet M2727nfs mfp, and then open the stapler door. 2 Remove the staple cassette from the product. 3 Clear any loose staples from the stapler and from the staple cassette. 4 Replace the staple cassette. 5 Close the stapler door, and then turn on the product. 6 Insert media to test the convenience stapler.
