Load paper to the 2 x 550-sheet paper trays
The following information describes how to load paper into the 2 x 550-sheet paper trays.
●
Load paper to the 2 x 550-sheet paper trays
●
2 x 550-sheet paper tray paper orientation
●
Use alternative letterhead mode
Load paper to the 2 x 550-sheet paper trays
Use the following process to load paper into the 2 x 550-sheet paper trays.

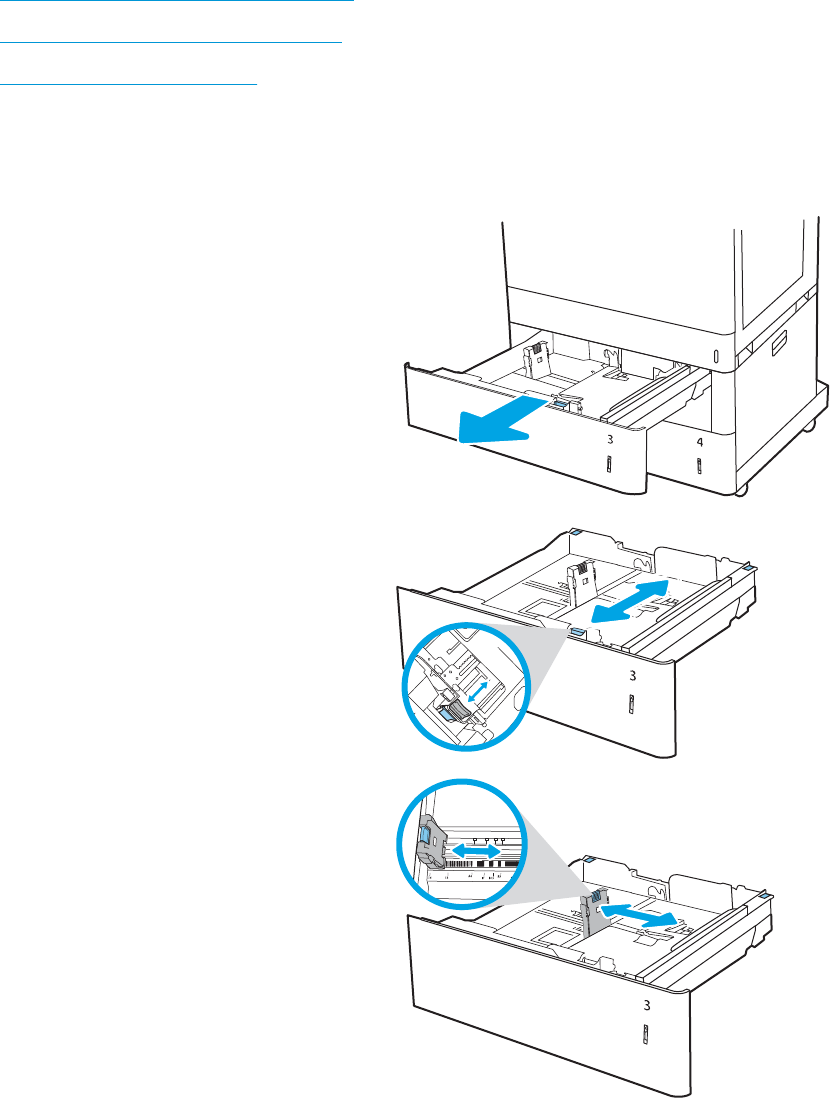

1. Open the tray.
NOTE: Do not open this tray while the printer is
printing.
2. Before loading paper, adjust the paper-width
guides by squeezing the blue adjustment latches
and sliding the guides to the size of the paper
being used.
3. Adjust the paper-length guide by squeezing the
adjustment latch and sliding the guide to the size
of the paper being used.
42 Chapter 2 Paper trays ENWW
