Using the Scanner Control Panel
Use the scanner control panel to identify yourself to the scanner if you
have a private destination list you want to use and to select destinations
for a scanned document.

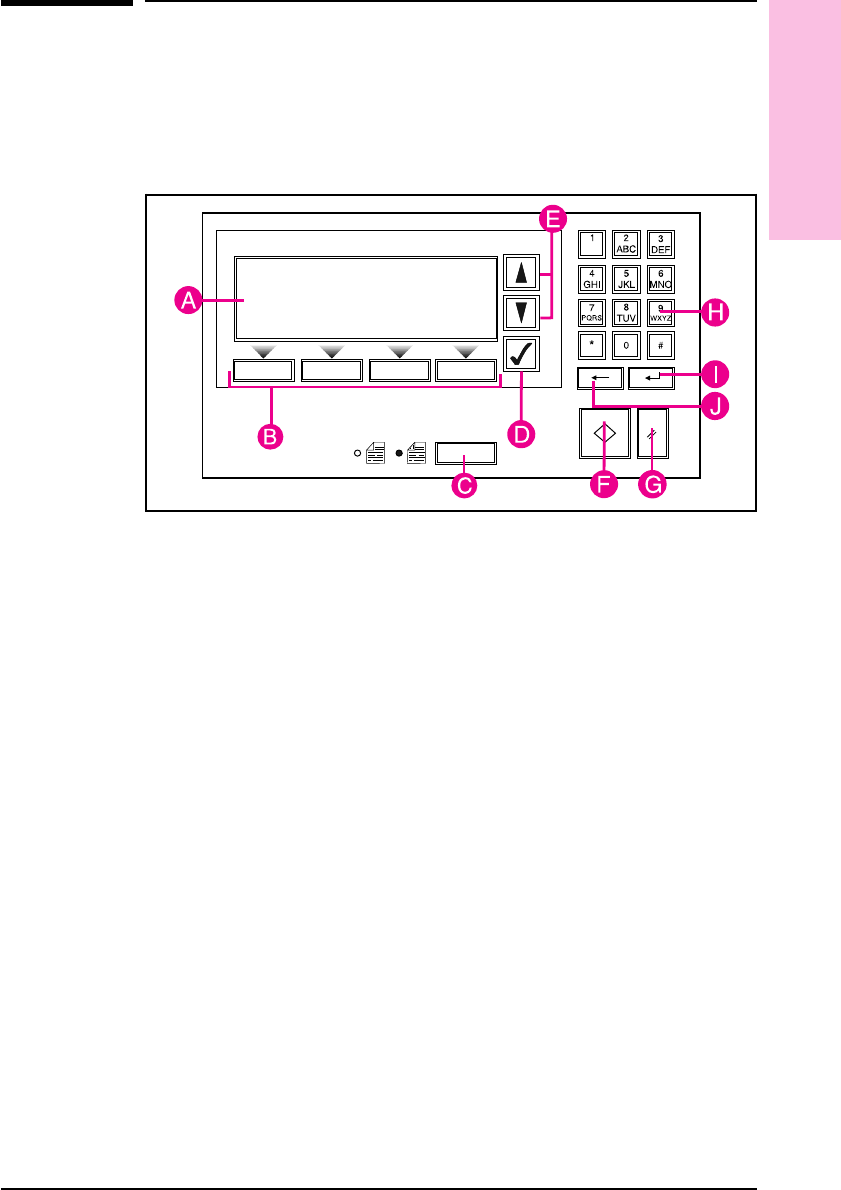

A Display—Displays user and destination lists, and status and error
messages.
B Soft keys—Press to perform the function displayed above the key.
C Single/double-sided key—Press to select single or double-sided
original (indicated by the light next to the icon).
D Select key—Press to select a user name or a destination.
E Scroll arrows—Press to move up and down in the user and destination
lists.
F Go key—Press to scan the document.
G Abort key—Press to stop the scanning and return to the main display
screen.
H Keypad—Use to type your name, password, destinations, and fax
numbers.
I Enter key—Press to send information to the scanner.
J Backspace key—Press to move the selection block to the left.
Figure 1
