Storage management 89
Edit SAN Fabric

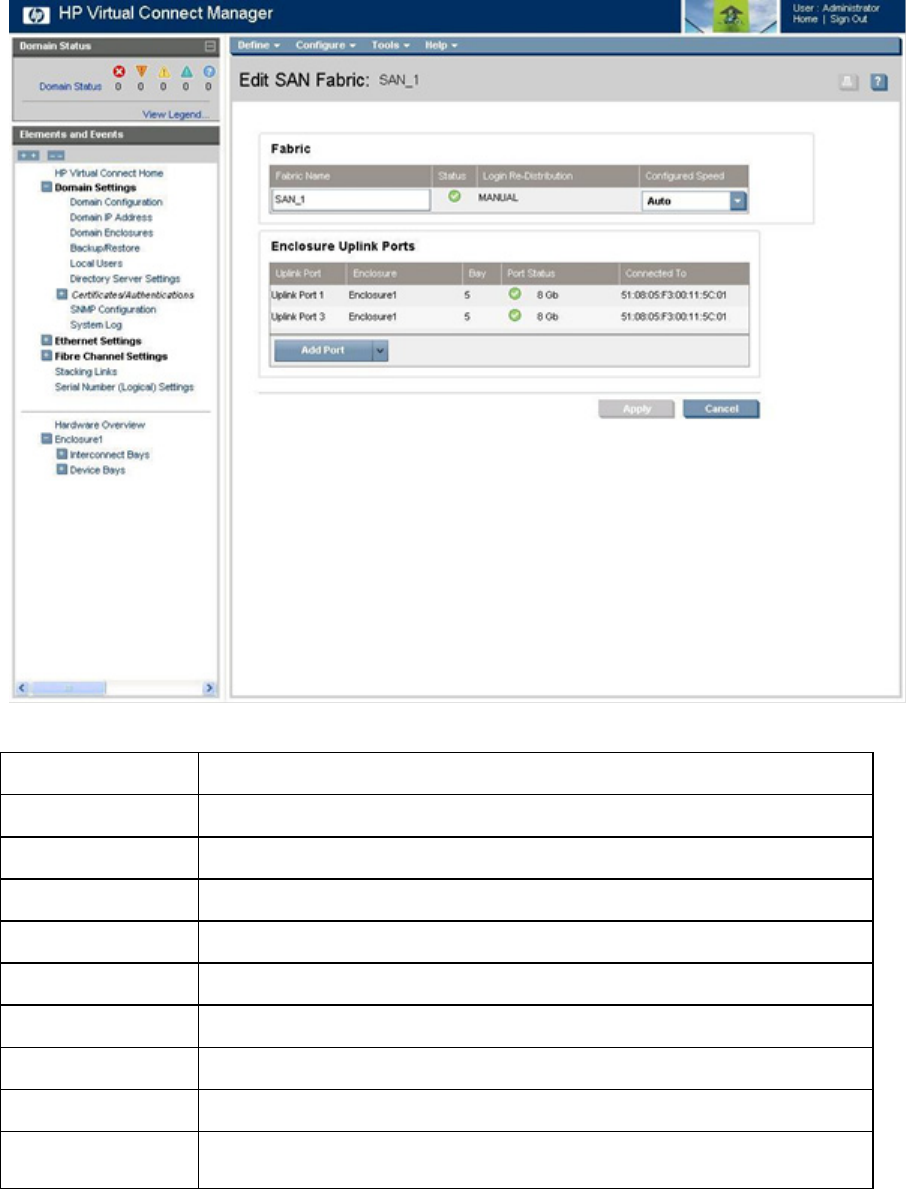

Use this screen to edit a SAN fabric configuration.
The following table describes the fields within the Edit SAN Fabric screen.
Field Description
Fabric Name Descriptive name for the fabric. Do not use spaces.
Status Status of the fabric
Login Re-distribution Type of login re-distribution assigned to the fabric (manual or automatic)
Configured Speed Requested speed of the uplink port
Uplink Port Faceplate name of the port
Bay Enclosure bay selected for the SAN fabric
Port Status Status of the uplink port
Speed Actual, connected speed of the uplink port
Connected To
WWN of the principal switch on the SAN fabric that this port is connected to on
the other end
