Storage management 83

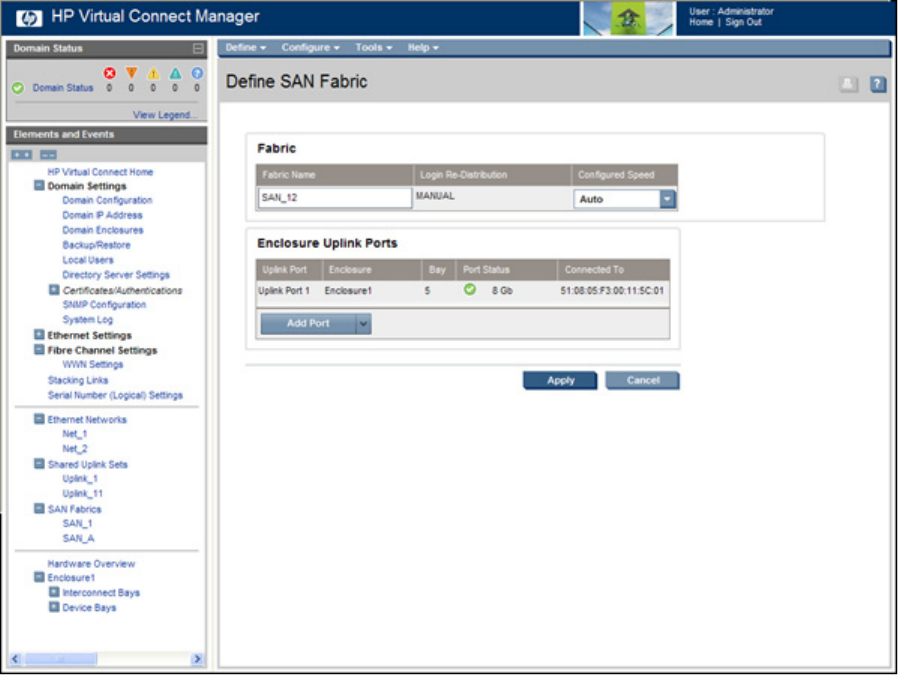

Define SAN Fabric screen
To define a SAN fabric, select the Define SAN Fabric link on the Home page, or click Define SAN Fabric
on the SAN Fabrics screen.
Only connect HP VC 4Gb FC module, HP VC 8Gb 24-Port FC module, or HP VC 8Gb 20-Port FC module
uplinks to Fibre Channel switch ports that are NPIV-enabled. If using a Brocade FC switch, verify that
NPIV is enabled properly by using the portshow command. If NPIV is not enabled properly, you might
need to downgrade the Brocade switch firmware, and then upgrade the firmware again.
• Single enclosure domain
