Network management 81
Shared Uplink Sets (Associated Networks) screen

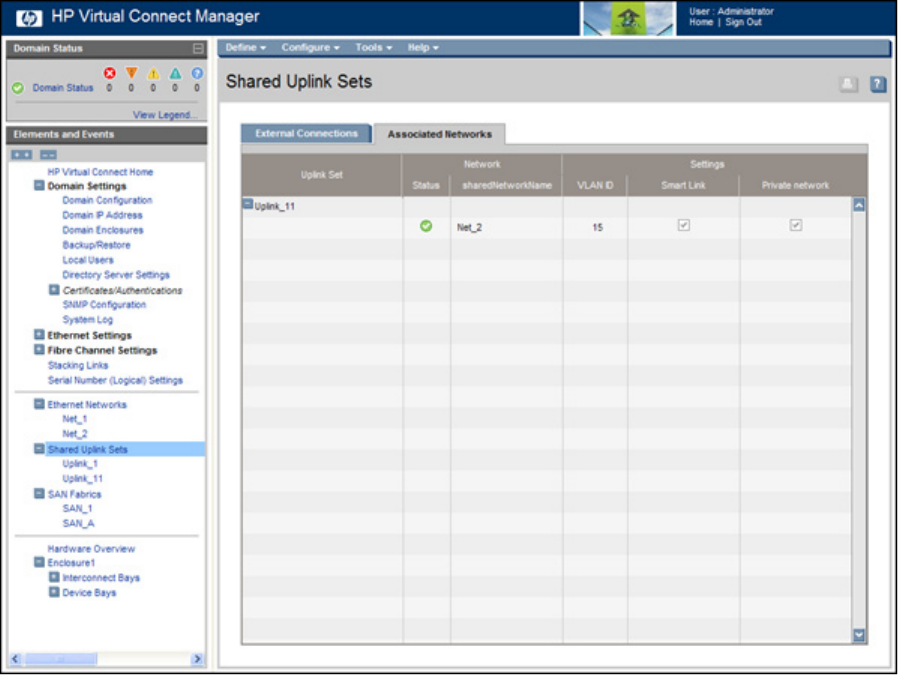

To access this screen, click the Shared Uplink Sets link in the left VC Manager navigation window, and
then click the Associated Networks tab.
This summary screen displays the mapping of networks to external shared uplink connections. This screen
is only applicable if multiple networks are being connected over a single external uplink set by the use of
VLAN tagging.
