Network management 80

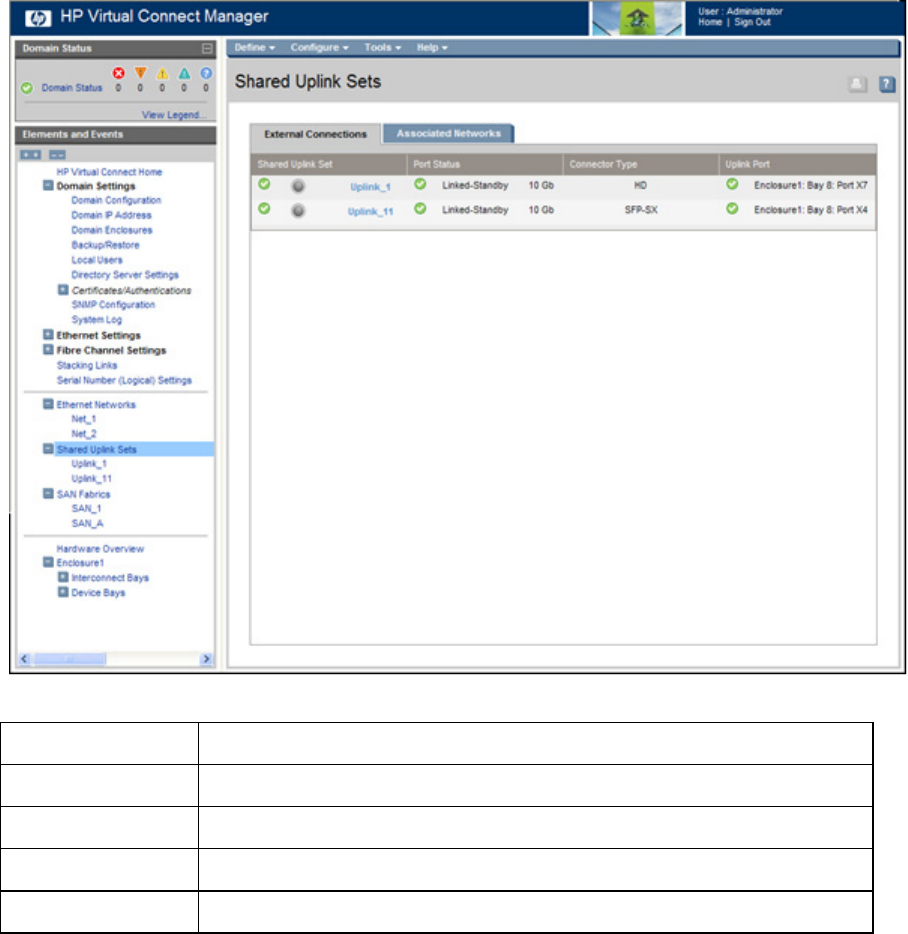

This summary screen provides an overview of external shared uplink connections. This screen is only
applicable if multiple networks are being connected over a single external uplink set by the use of VLAN
tagging.
The following table describes the fields within the Shared Uplink Sets screen.
Field Description
Shared Uplink Set Displays the status, UID, and name of the shared uplink set
Port Status Status of the uplink port, linked or unlinked
Connector Type The type of connector on the port; for example, SFP-SX
Uplink Port Enclosure, bay, and port number of the external uplink
To add a shared uplink set, right-click on the header row to display a menu, and then select Add.
To edit a shared uplink set, left-click to select an uplink set, right-click to display a menu, and then select
Edit.
To delete a shared uplink set, left-click to select an uplink set, right-click to display a menu, and then select
Delete.
