Network management 78

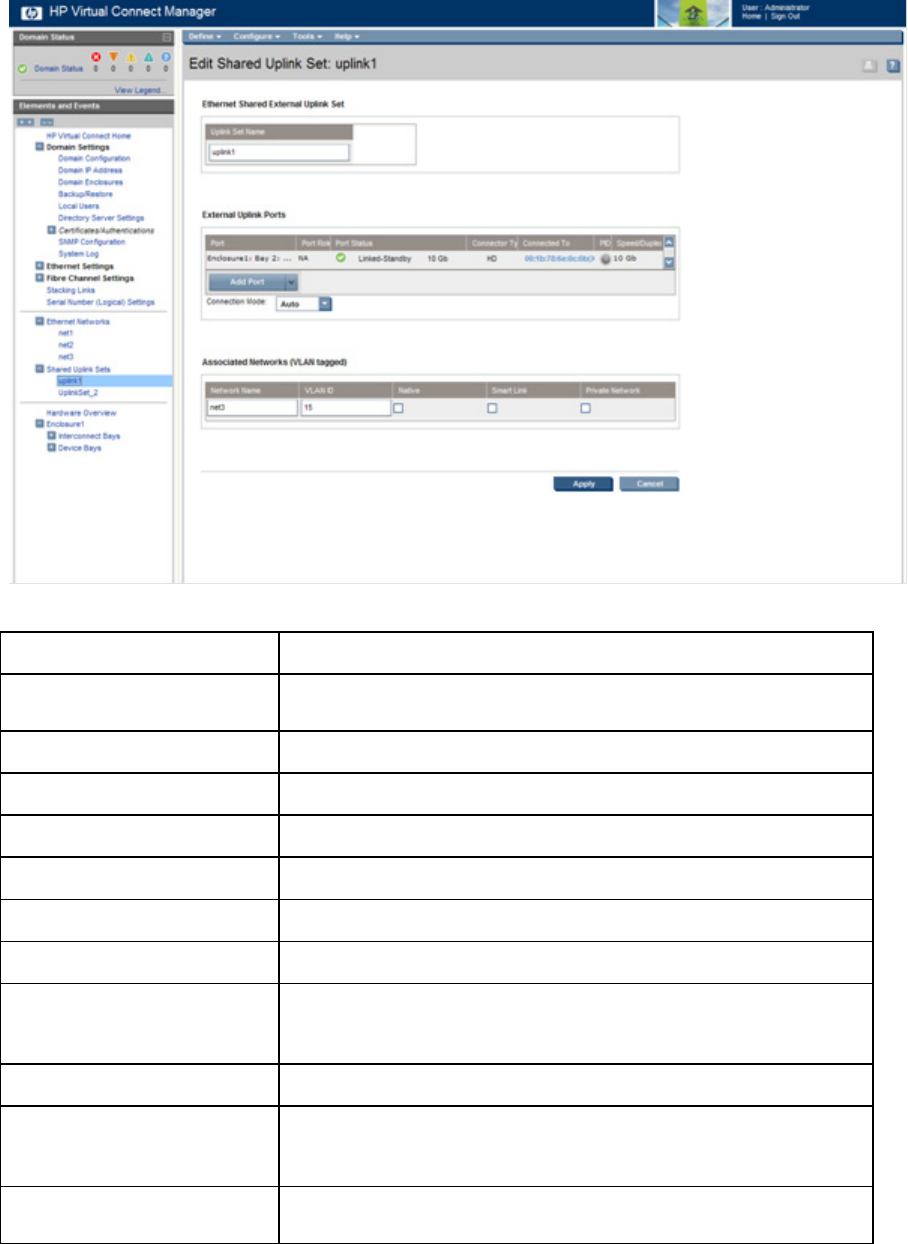

Use this screen to edit the properties of an existing shared uplink set, add/delete an associated network,
or delete a shared uplink set. This screen has the same fields as the Define Shared Uplink screen. The
screen can be edited only by users with network privileges, but it is viewable by all authorized users.
The following table describes the fields within the Edit Shared Uplink Set screen.
Field name Description
Ethernet Shared External Uplink
Set
Uplink Set Name Descriptive name for the shared uplink set. Do not use spaces.
External Uplink Ports
Port Enclosure, bay, and port number
Port Role Displays whether the port is designated as primary or secondary
Port Status Displays linked or unlinked
Connector type The type of connector on the port; for example, RJ-45
Connected to
If the individual port is connected to a switch that supports LLDP, the
switch MAC address and switch port number appear. A link is provided
to obtain more information about the far-end switch port.
PID PID status icon (illuminated or not illuminated) for the port
Speed/Duplex
Pull-down menu to specify the speed and duplex (where applicable) of
the uplink port. Half-duplex operations are not supported by the VC-Enet
module.
Associated Networks (VLAN-
tagged)
