Network management 61
Task Action
Define a new network Right-click in the table to display a menu, and then click Add.
Delete a network
Left-click on the network row, right-click to display a menu, and then
select Delete. Type in the network name, and then click OK.
Illuminate the PID for all uplink
ports associated with a network
Click on the circle next to the network in the list.

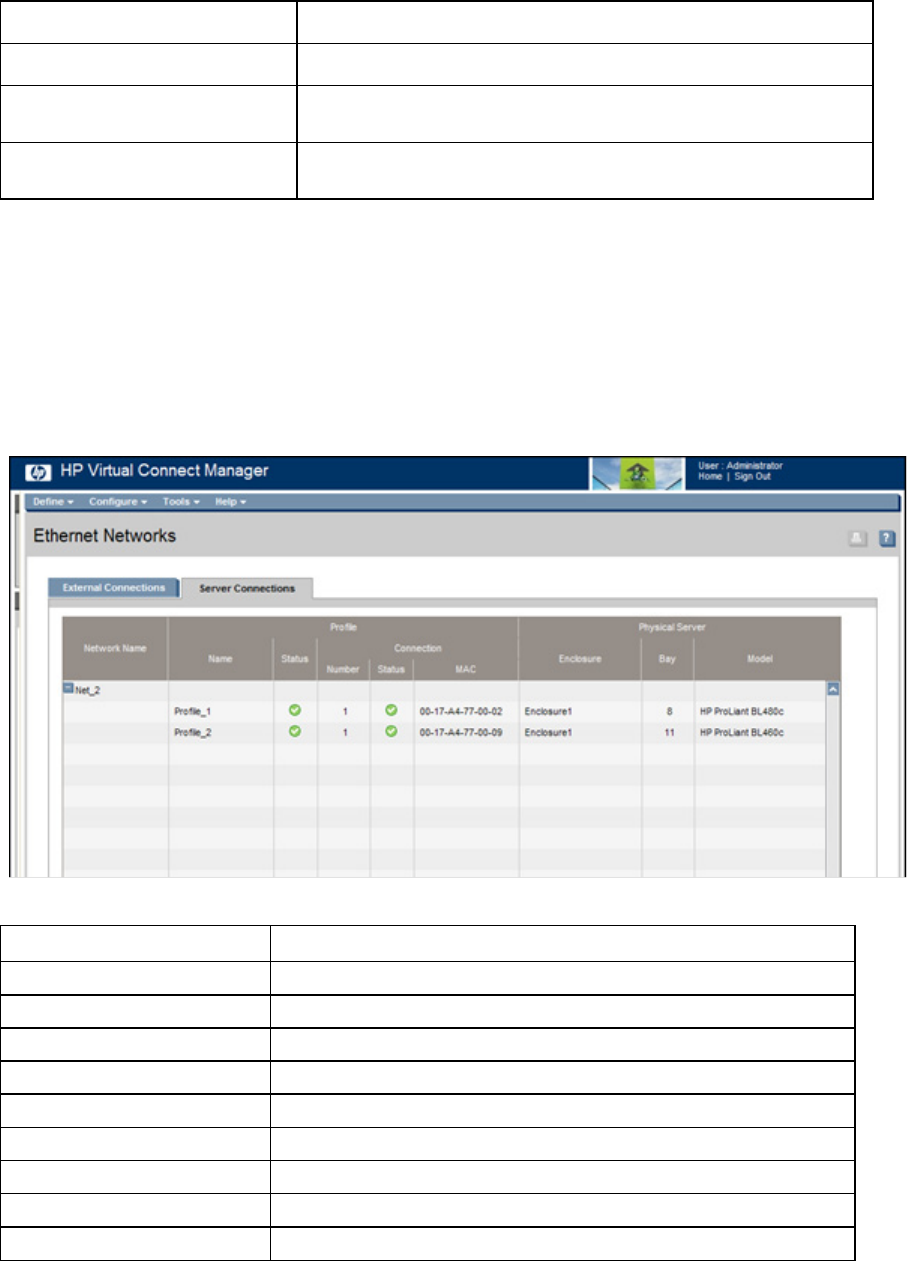

Ethernet Networks (Server Connections) screen
To access this screen, click the Ethernet Networks link in the left VC Manager navigation window, and
then click the Server Connections tab.
This summary screen lists the server ports connected to each network in the Virtual Connect domain. This
screen is viewable by all authorized users.
The following table describes the columns within the Ethernet Networks (Server Connections) screen.
Column name Description
Network Name Name of the Network
(Profile) Name Name of the profile
(Profile) Status Overall status of the server profile
(Profile) Number Number of the profile
(Profile Connection) Status Shows the overall status of the individual server port
(Profile Connection) MAC Lists the MAC address for the server port
(Physical Server) Enclosure Enclosure number where the server resides
(Physical Server) Bay Bay number where the server resides.
(Physical Server) Model Model of the server.
