Network management 57

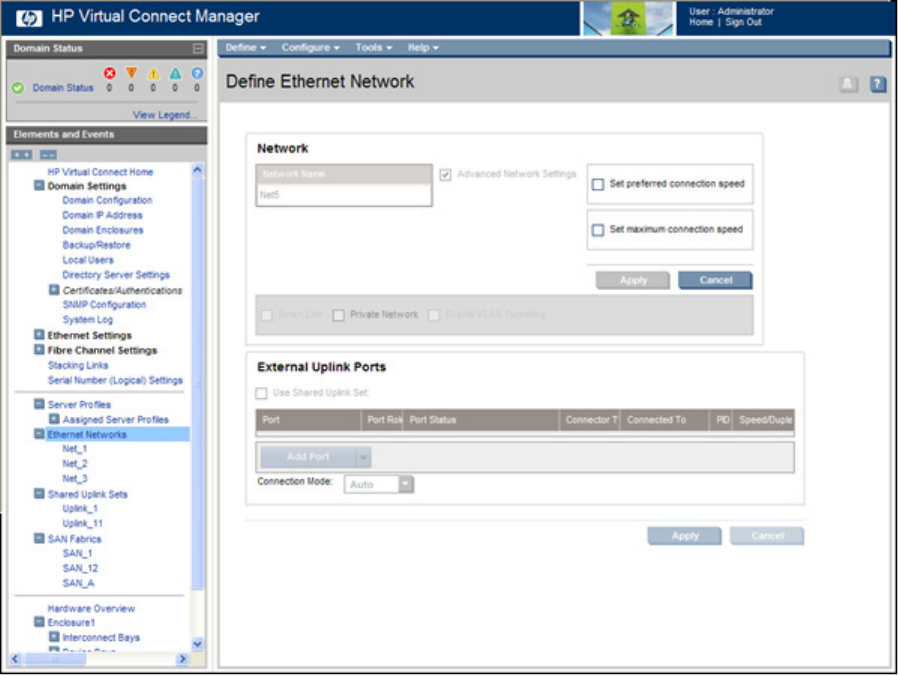

Advanced Network Settings
These settings affect only newly created profiles. Changing these settings does not affect any assigned
profiles.
To set the speed, click the selection box, select a setting (100Mb to 10Gb), and then click OK.
• Set a Custom value for the Preferred Link Connection Speed.
This value is the default speed for server profile connections mapped to this network. The server
administrator can override this setting on an individual profile connection.
• Set a Custom value for the Maximum Link Connection Speed.
This value is the maximum speed for server profile connections mapped to this network. The server
administrator can override this setting on an individual profile connection.
For additional information, see "Multiple Networks Link Speed Settings (on page 72)."
Edit Ethernet Network screen
To access this screen, click the network name under the Ethernet Networks link in the left VC Manager
navigation window.
Use this screen to edit the properties of an existing network or to delete a network.
