Domain management 29

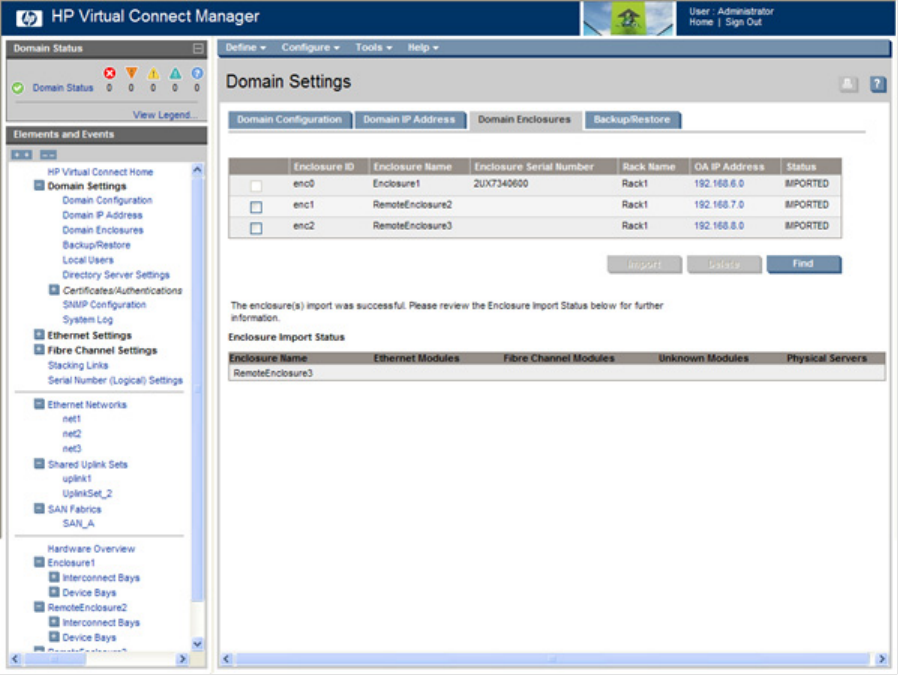

Virtual Connect Manager imports the enclosure and provides status information.
Removing a remote enclosure
To remove a remote enclosure, disassociate all profiles, networks, port sets, and port monitors from the
enclosure. If the enclosure is currently in a No-COMM state, the remote enclosure remains in VC Mode.
Take the enclosure out of VC mode manually with the OA command line for that enclosure.
To remove a remote enclosure:
1. Go to the Domain Settings (Domain Enclosures) screen (on page 26).
2. Select the checkbox next to the enclosure to be removed.
3. Click Delete.
Domain Settings (Backup/Restore) screen
Use this screen to create a backup file of the Virtual Connect domain configuration or to restore a
configuration that has been lost. The domain configuration includes network definitions, MAC address
settings, WWN settings, Fibre Channel fabric settings, local user accounts, and server profile definitions.
The backup file stores the same information that is check-pointed between the active and standby modules
during normal operation.
