Domain management 27
Column Description
Status Displays whether the enclosure has been imported

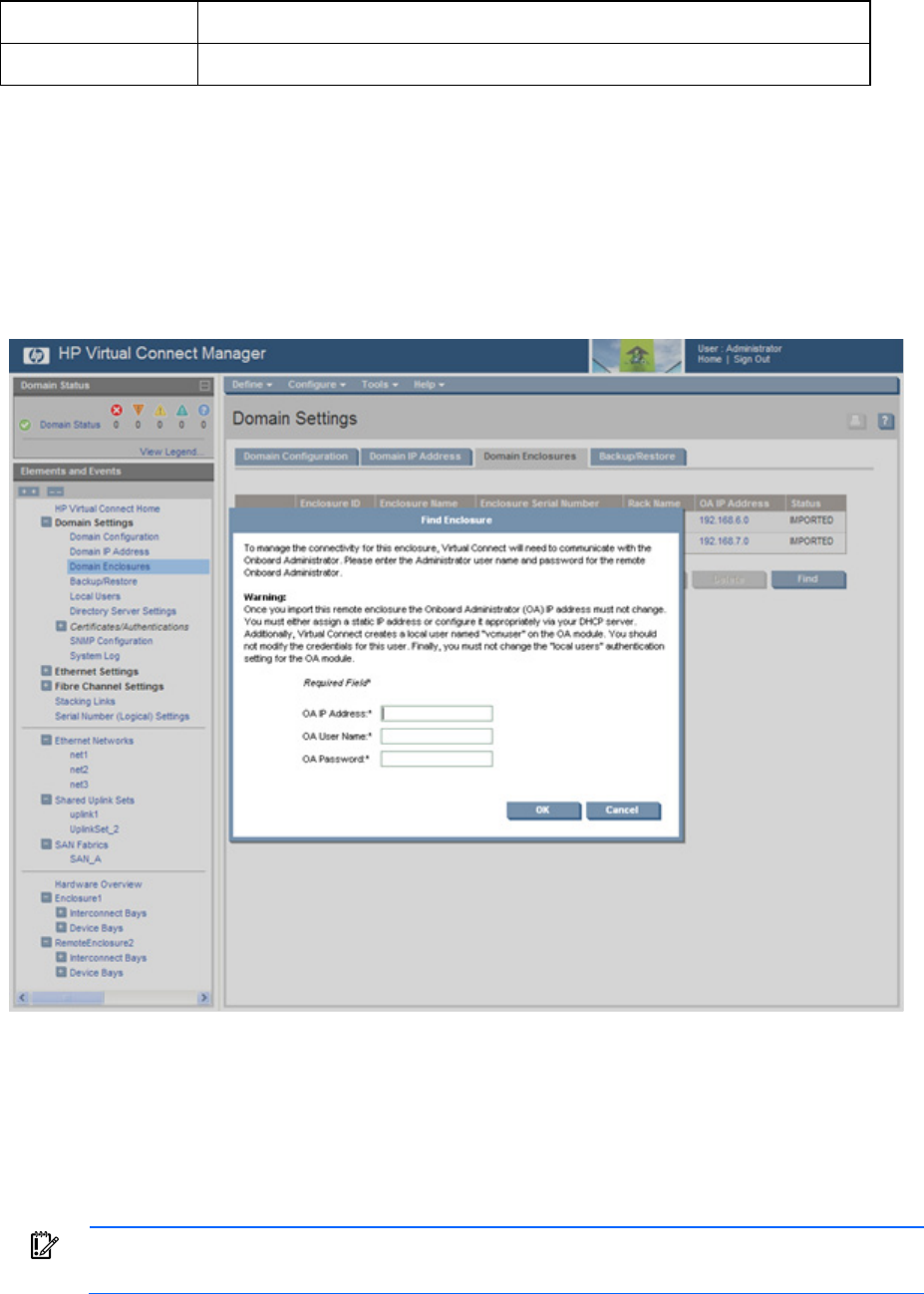

Adding and importing a remote enclosure
Adding and importing a remote enclosure requires full domain and server privileges. Virtual Connect
Manager supports up to four c7000 enclosures in a single domain.
To add a remote enclosure:
1. Click Find on the Domain Settings (Domain Enclosures) screen (on page 26).
2. Type in the following information:
o OA IP Address
o OA User Name
o OA Password
3. Click OK.
4. Select the box next to the discovered enclosure.
IMPORTANT: No more than four enclosures can be found or imported. If an enclosure is
unintentionally found, it can be removed by clicking Delete.
