Domain management 26
Task Action
Clear unsaved changes on the screen Click Clear.
Save changes and remain on this
screen
Click Apply.
Cancel without saving changes Click Cancel.

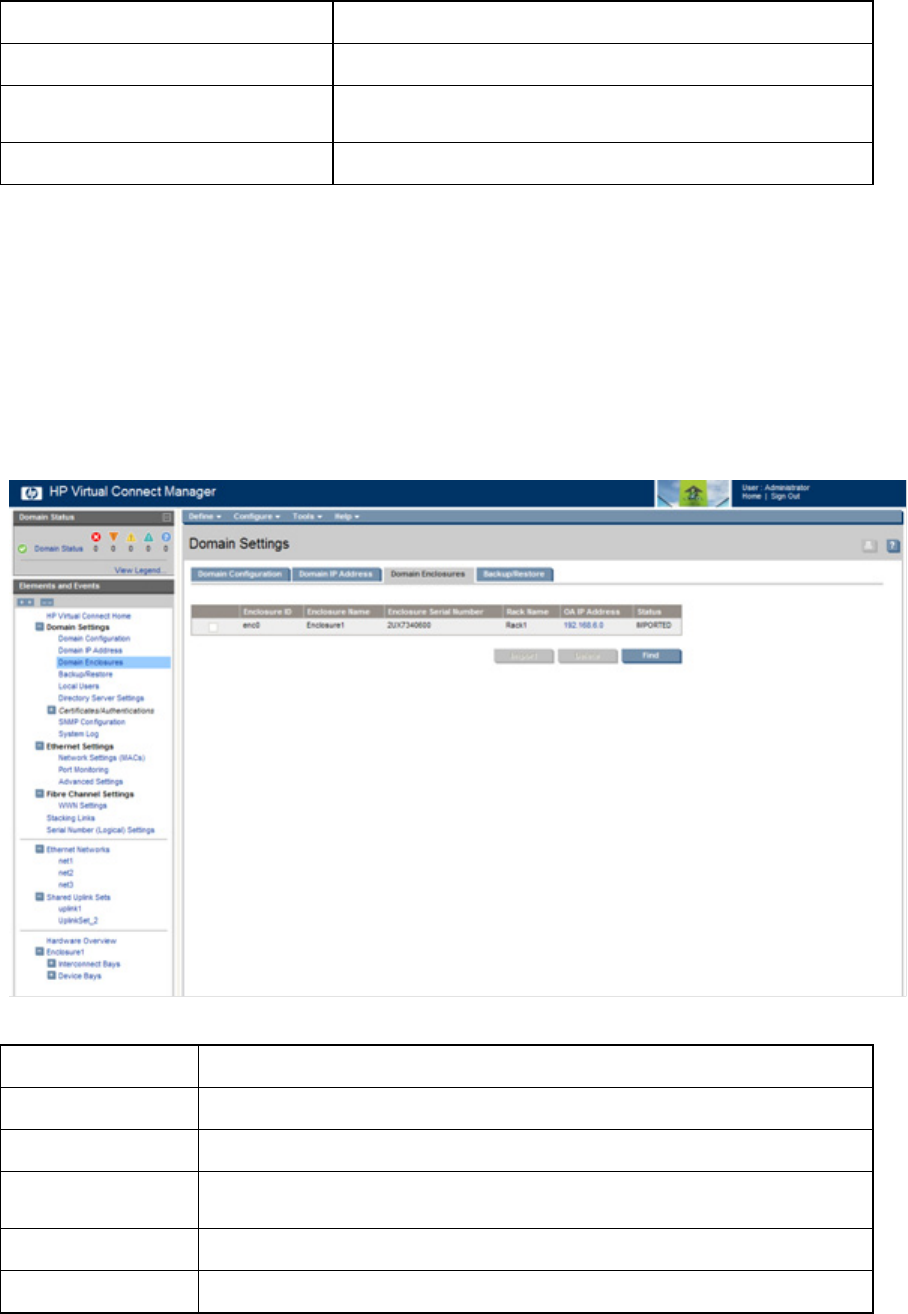

Domain Settings (Domain Enclosures) screen
Use this screen to import, delete, or add enclosures in the domain.
Multiple enclosures are supported only if a VC-Enet module is running in bay 1 and bay 2 of the primary
enclosure.
For additional information on adding and importing a remote enclosure and connecting multiple
enclosures, see the HP Virtual Connect for c-Class BladeSystem Setup and Installation Guide.
The following table describes the columns within the Domain Settings (Enclosures) screen.
Column Description
Enclosure ID Assigned ID of the enclosure
Enclosure name Name of the enclosure
Enclosure serial
number
Serial number of the enclosure
Rack name Name of the rack (assigned through the Onboard Administrator)
OA IP Address Local Enclosure indicates this enclosure is managed by the local OA
