Domain management 25
4.
Enter the name of the domain to be deleted. This should be the name of the domain you are
currently logged into, displayed in the Virtual Connect Domain Name box on the Domain Settings
(Domain Configuration) screen (on page 23).
5. Click OK.
If deleting a domain that was using MAC addresses predefined by HP, the administrator should also
update the "Teaming" driver configuration file on the host OS. Otherwise, the driver reinitializes to the
saved MAC address predefined by HP and not the factory default value.

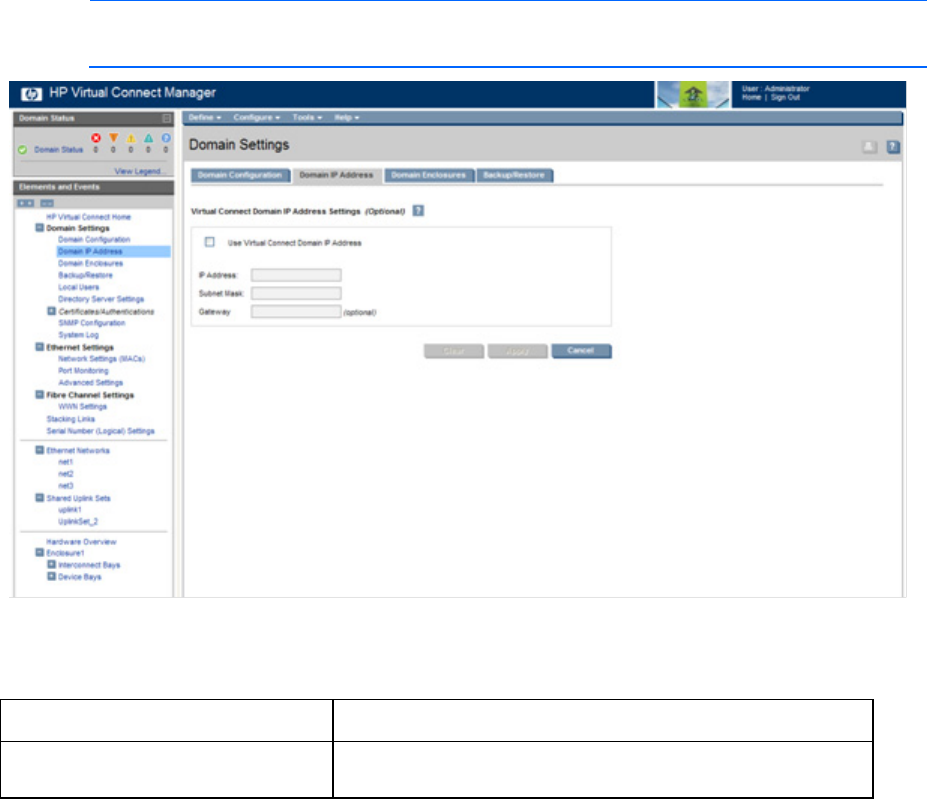

Domain Settings (Domain IP Address) screen
Use this screen to set a domain IP address for the Virtual Connect domain.
The optional domain IP address setting allows for a consistent IP address that is independent of the
interconnect module on which it is running. If set, this IP address must be unique within the network and
must be different than the IP address of the module itself. If this IP address is not set, the VC Manager can
still be reached through the IP address of the host Virtual Connect Ethernet module.
To use an optional domain IP address, select the Use Domain IP address checkbox, and then enter the IP
Address, Subnet Mask, and Default Gateway.
NOTE: Even if a domain IP address is provided, the normal IP address assigned to the
interconnect bay can still be used.
The following table describes the available actions in the Domain Settings (Domain IP Address) screen.
Clicking another link in the pull-down menu or left navigation window causes current edits that have not
been applied to be lost.
Task Action
Use a VC domain IP address
Select the box next to Use Virtual Connect Domain IP Address,
and then enter the IP Address, Subnet Mask, and Gateway.
