Hardware information screens 153

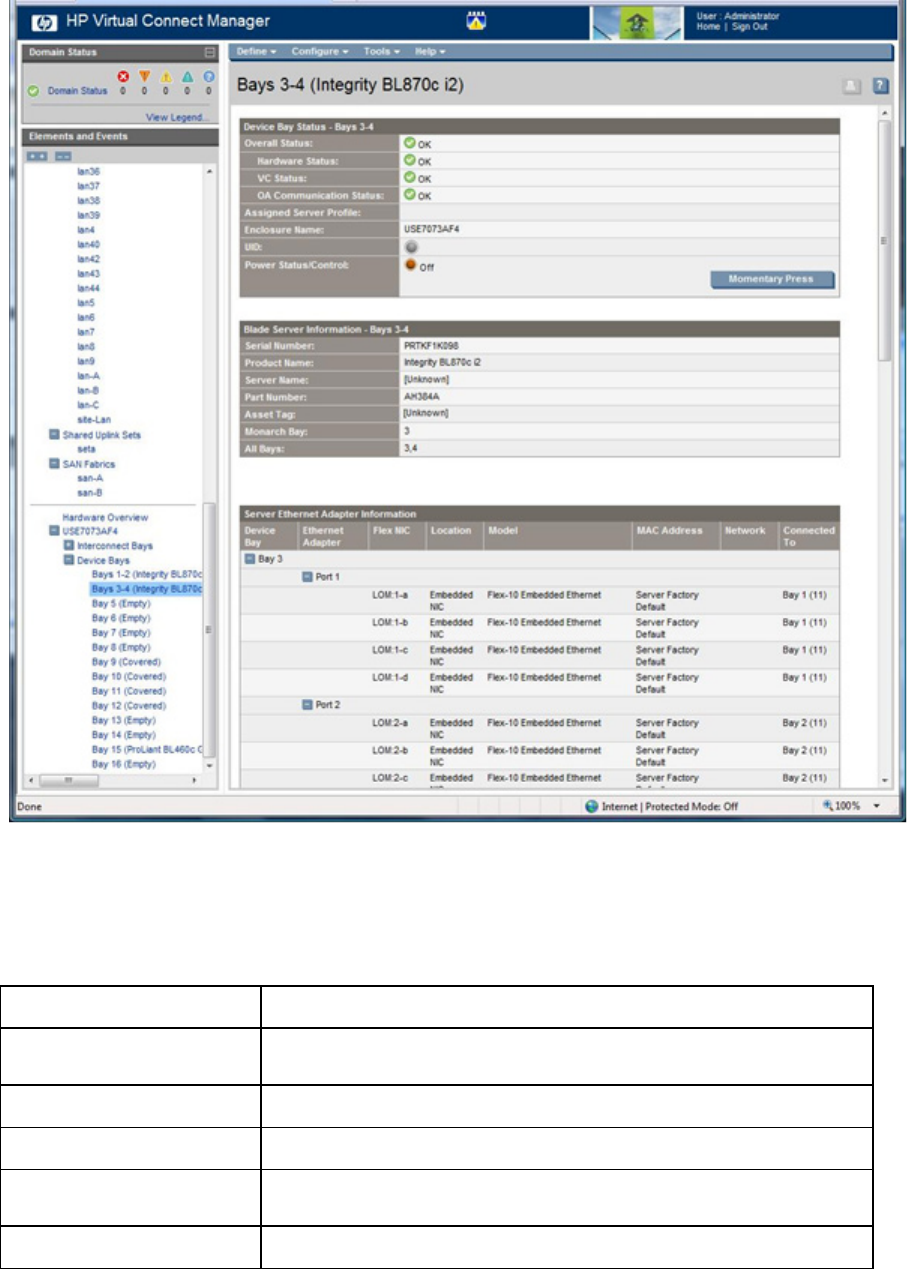

Server Bay Status screen - multi-blade servers
To change the power state of the server blade, click Momentary Press.
To power the server blade on or off, click Press and Hold.
The following table describes the rows within the Server Bay Status table in the Server Bay Status screen.
Server Bay Status
Row Description
Overall Status
Represents the worst condition of Hardware Status, VC Status, and OA
Communication Status
Hardware Status Component health status from the Onboard Administrator
VC Status Component health status from the Virtual Connect Manager
OA Communication Status
Current Virtual Connect Manager to Onboard Administrator
communication state
Assigned Server Profile Name of the profile currently assigned to the server blade in this bay
