Hardware information screens 151
Row Description
Power Status/Control Icon indicates whether the server blade in that bay is powered on or off.

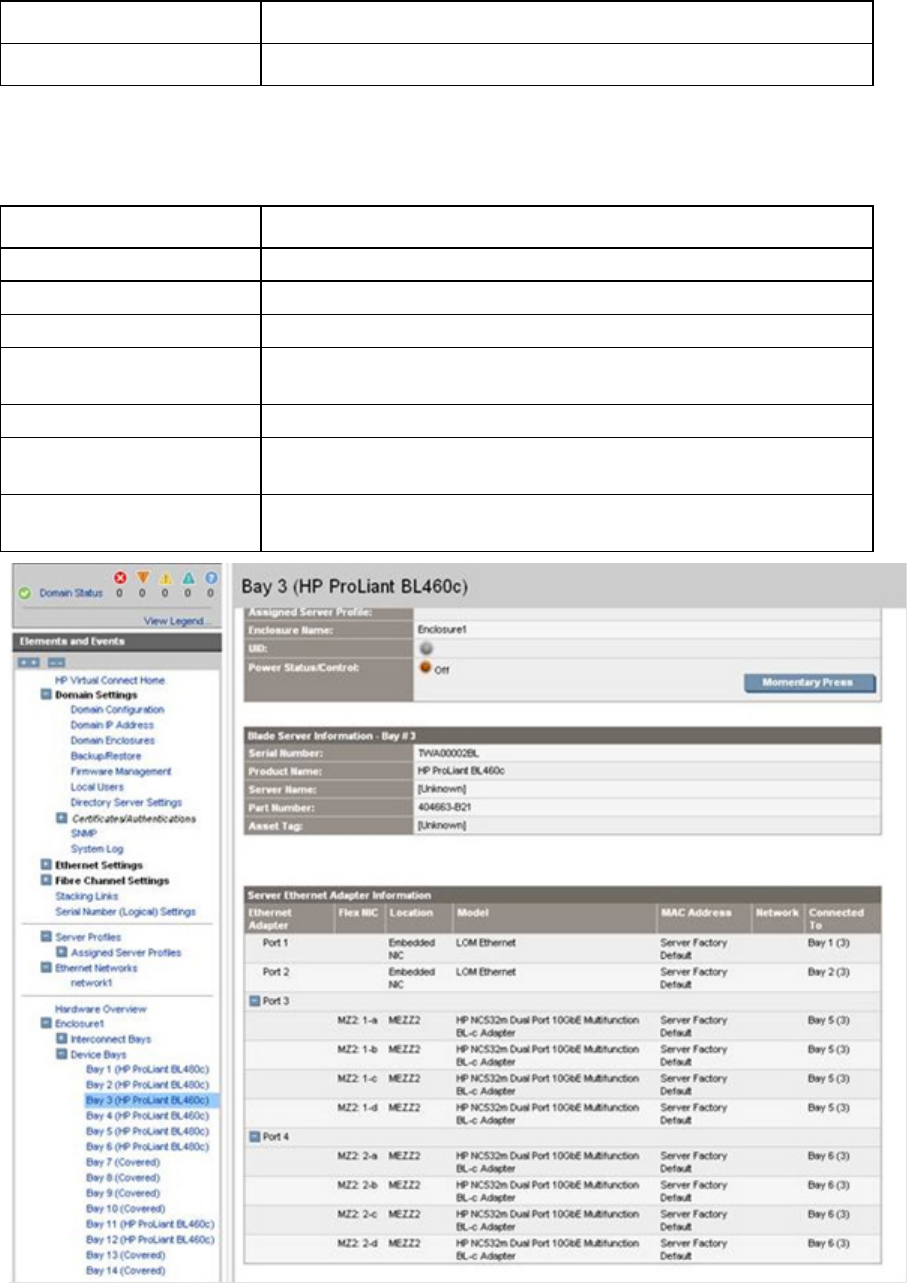

The following table describes the rows within the Server Blade Information table in the Server Bay Status
screen.
Server Blade Information
Row Description
Serial Number The unique serial number of the server blade
Product Name The common descriptive name of the server blade
Server Name If configured, the server name of the installed server blade
Part Number
The part number to be used when ordering an additional or replacement
server blade of this type
Asset Tag If configured, the asset tag of the installed server blade
Monarch Bay (multi-blade
servers only)
Identifies the monarch bay in the multi-blade server
All Bays (multi-blade servers
only)
Identifies all of the bays in the multi-blade server
