Hardware information screens 145

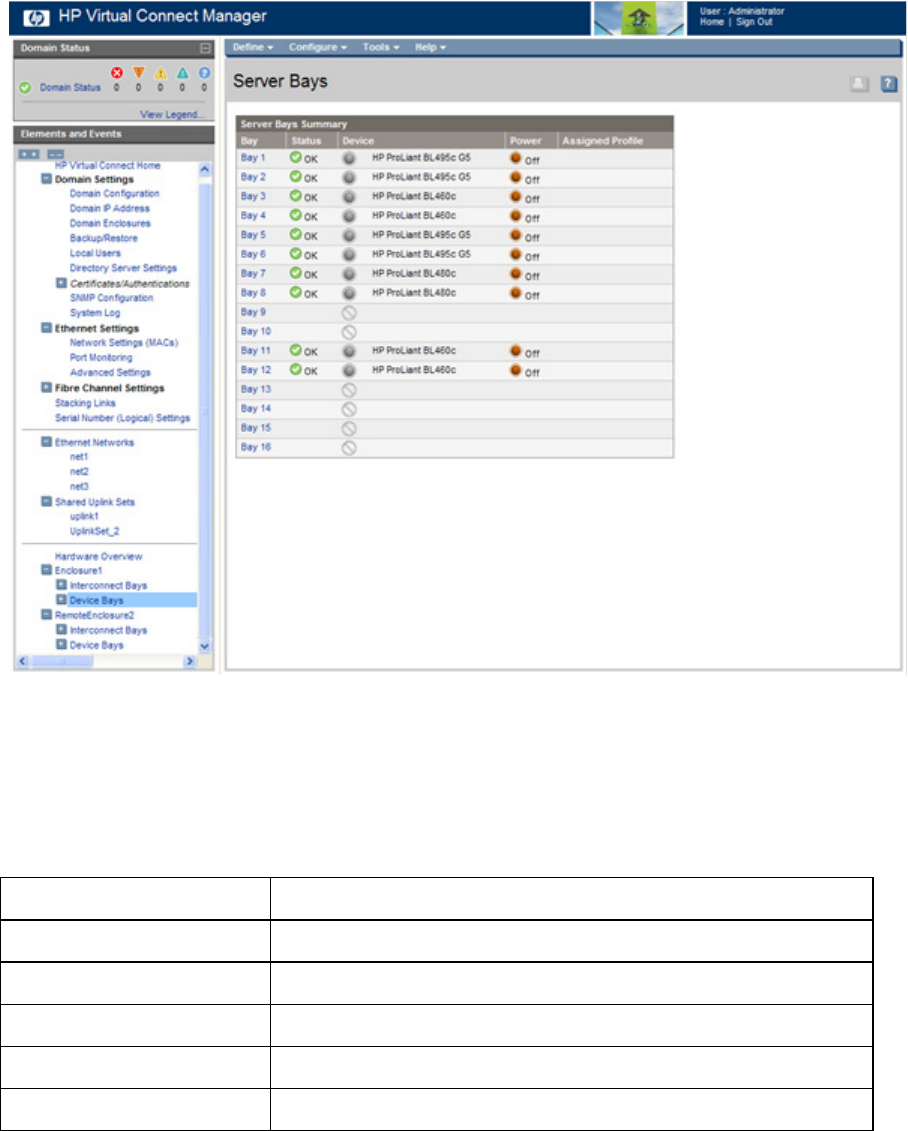

Server Bays Summary screen
Device bay numbering is affected by whether the 'Allow the double density device bays' option was
selected while using the Domain Setup Wizard. Bays might appear as 'Covered' or 'Unknown.' For more
information, see "Double-dense server bay option (on page 146)."
If a multi-blade server is installed, the bay numbering shows a span of bays, for example, Bays 1-4, in the
Bay column. For more information, see "Multi-blade servers (on page 93)."
The following table describes the columns within the Server Bays Summary screen.
Column Description
Bay Bay number
Status Status of the server blade in the bay
Device Type of server blade installed in the bay
Power Icon indicates whether the server blade is powered on or off
Assigned Profile Name of the server profile assigned to the device bay
