Hardware information screens 140
The following table describes the rows within the Interconnect Bay Information table in the Bay Summary
screen.
Row Description
Part Number
The part number to be used when ordering an additional module of this
type
Product Name The common descriptive name of the module
Serial Number The unique serial number of the module
Spare Part Number
The part number to be used when ordering a replacement module of this
type
Manufacturer The manufacturer of the module
Node WWN WWN assigned to the module

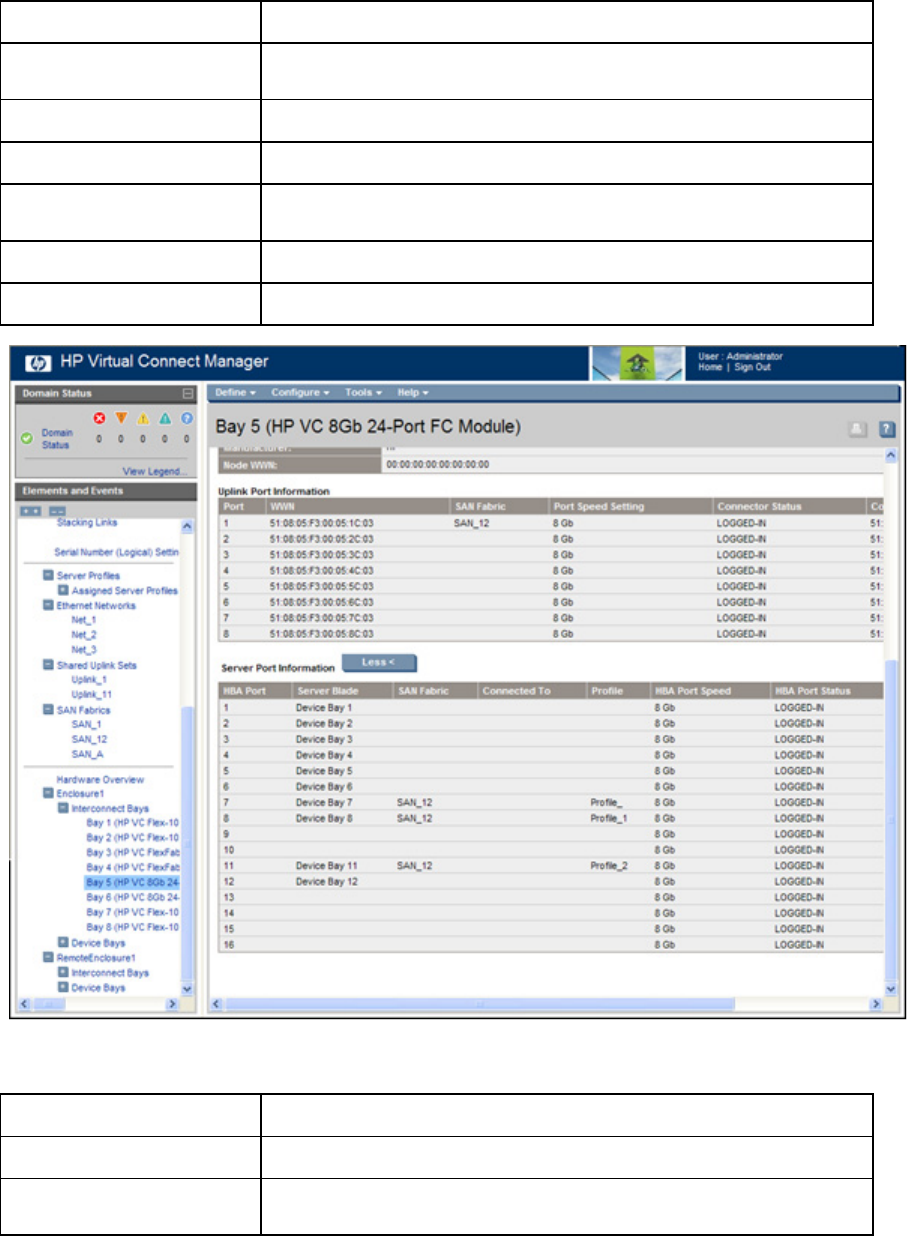

The following table describes the rows within the Uplink Port information table in the Bay Summary
screen.
Column Description
Port The uplink port number
WWN
Either the World Wide Name assigned to the port or the Server Factory
Default, if not assigning WWNs
