Hardware information screens 139

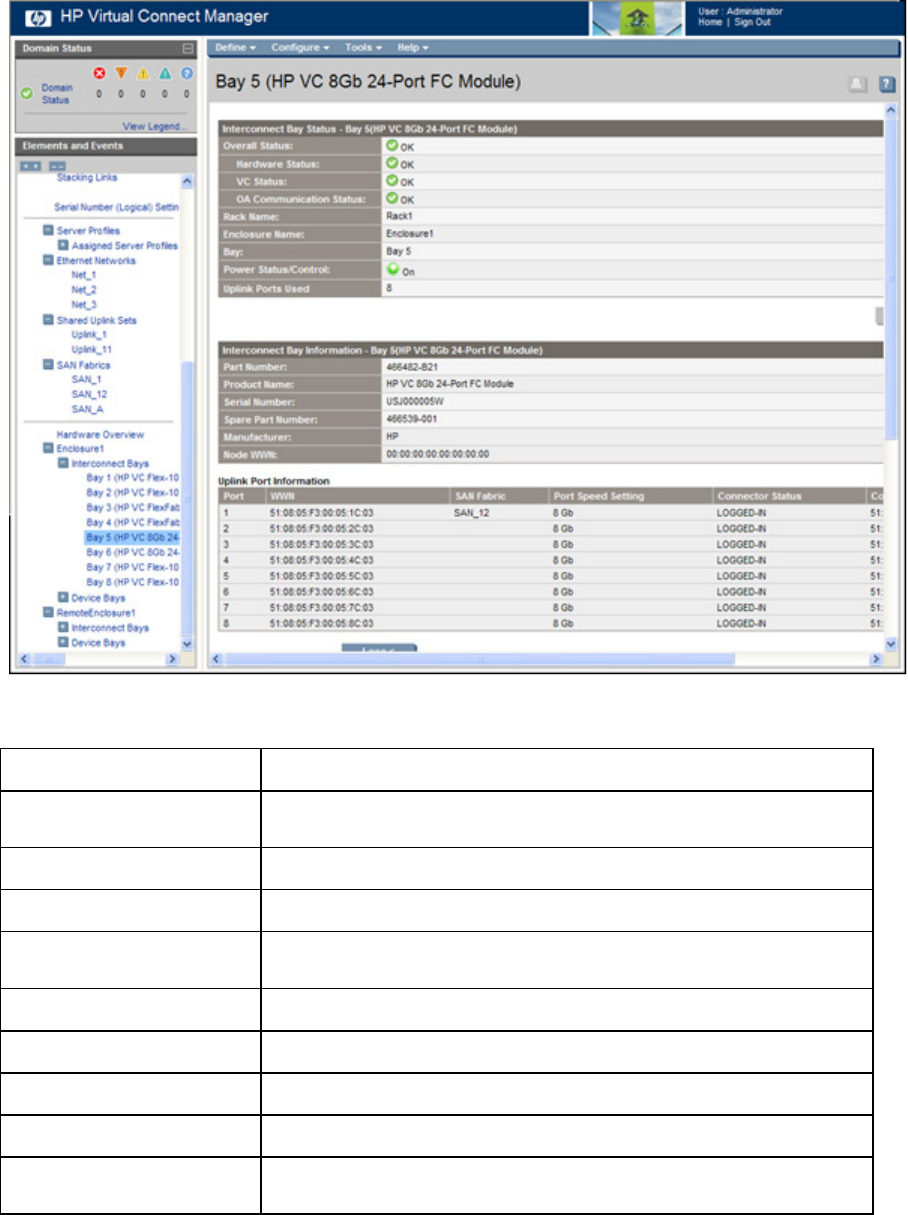

Interconnect Bay Summary screen (VC-FC Module)
This screen provides a summary of the interconnect module status and port information. To remove a
module from the domain, see "Administrative module removal (on page 142)."
The following table describes the rows within the Interconnect Bay Status (VC-FC Module) table in the Bay
Summary screen.
Row Description
Overall Status
Represents the worst condition of OA Reported Status, VC Status, and OA
Communication Status
Hardware Status Component health status from the Onboard Administrator
VC Status Component health status from the Virtual Connect Manager
OA Communication Status
Current Virtual Connect Manager to Onboard Administrator
communication state
Rack Name Name of the enclosure rack (assigned through the Onboard Administrator)
Enclosure Name Name of the enclosure (assigned through the Onboard Administrator)
Bay Number of the bay being summarized on this screen
Power Status Control Power state of the device
Uplink Ports Used
Number of uplink ports used to connect to the SAN. This number specifies
the oversubscription ratio (4:1, 8:1, or 16:1).
