Hardware information screens 129
The following table describes the rows within the Interconnect Bay Information table in the Bay Summary
screen.
Row Description
Part Number
The part number to be used when ordering an additional module of this
type
Product Name The common descriptive name of the module
Serial Number The unique serial number of the module
Dip Switch Setting
The current physical setting of the system maintenance switches in a
hexidecimal format, where the least significant four bits of the value
correspond to the four switches and a bit value of 1 indicates the switch is
in the "on" position.
Spare Part Number
The part number to be used when ordering a replacement module of this
type
Manufacturer The manufacturer of the module
Firmware Rev The current firmware revision of the module

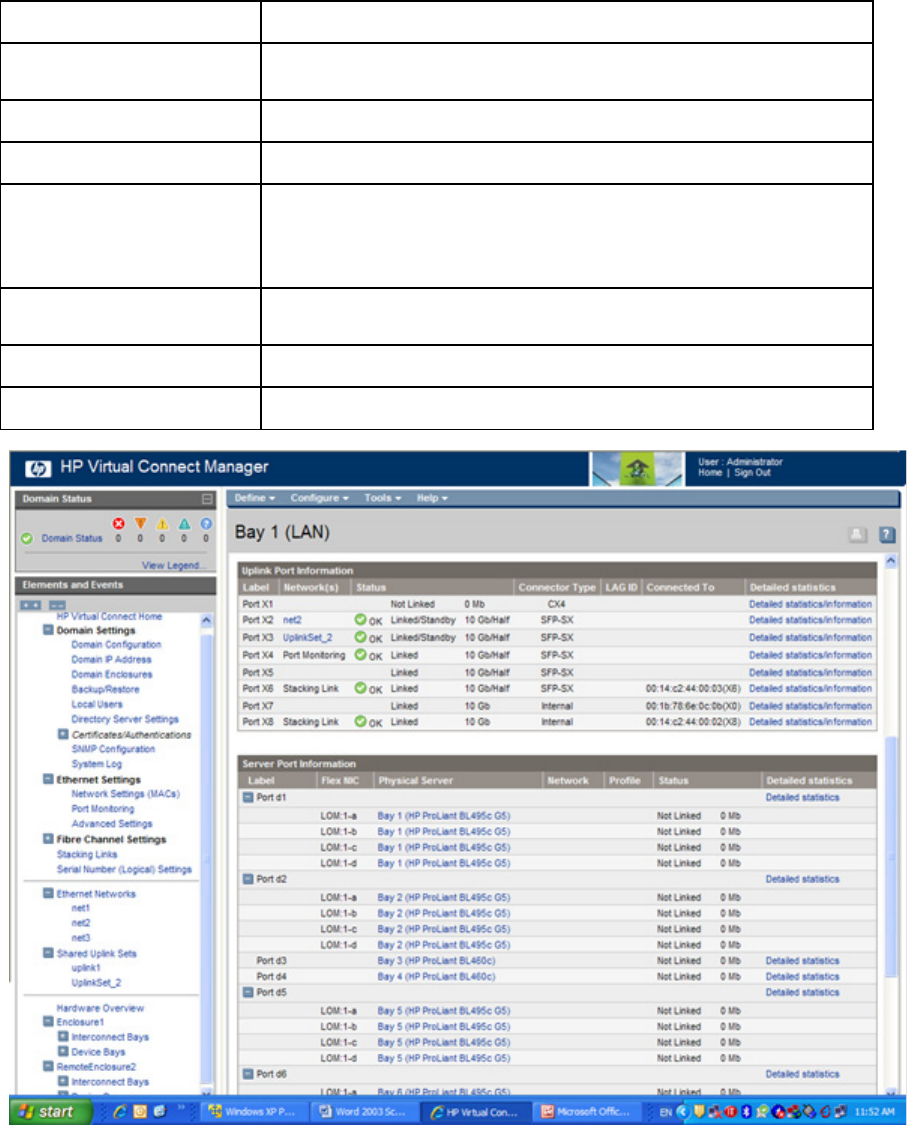

The following table describes the columns within the Uplink Port Information table in the Bay Summary
screen.
