Hardware information screens 126
Interconnect Bays Status and Summary screen

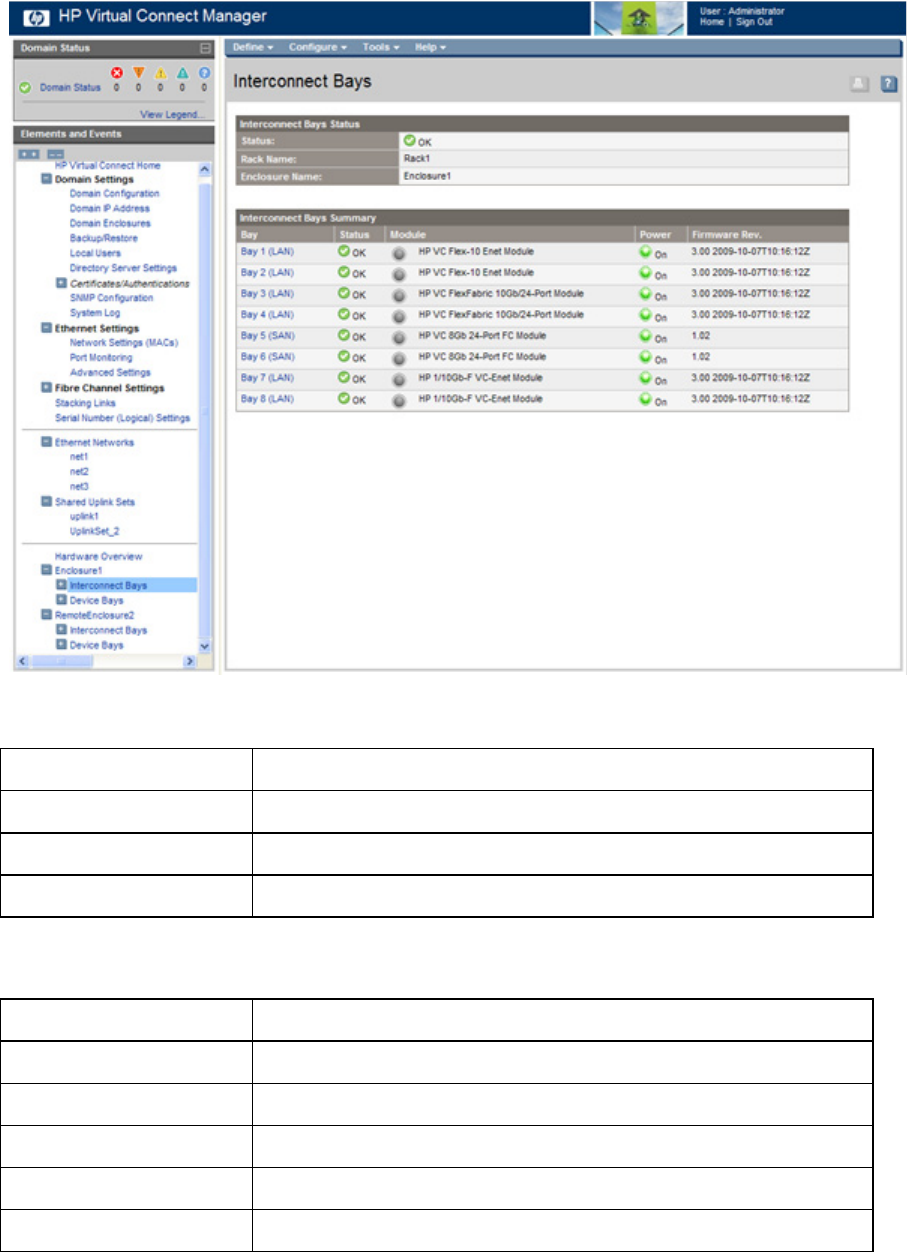

The following table describes the rows within the Interconnect Bays Status table in the Interconnect Bays
Status and Summary screen.
Row Description
Status Overall status of the interconnect bays in the enclosure
Rack Name Name of the enclosure rack (assigned through the Onboard Administrator)
Enclosure Name Name of the enclosure (assigned through the Onboard Administrator)
The following table describes the columns within the Interconnect Bays Summary table in the Interconnect
Bays Status and Summary screen.
Column Description
Bay Bay number and connection type
Status Status of the interconnect module in the bay
Module UID icon (click to toggle UID state) and type of module installed in this bay
Power Icon indicates whether the interconnect module is powered on or off
Firmware Rev Firmware revision of the interconnect module installed in this bay
