hp pavilion f1503/f1703 LCD Monitor
Setting Up the Monitor
13 English
Connecting speakers to the monitor
The monitor is designed for use with the speakers supplied by HP.
You may have two speakers, or two speakers and an optional
subwoofer (not included with the monitor).
The left and right speakers sit on the desktop. The right speaker
features:
• On/Volume knob
• Headphones connector
• Stereo audio cable (green plug) that plugs into the PC or the
subwoofer
• Hardwired audio cable that goes to the left speaker
• Connector that accepts a subwoofer control cable
• Receptacle for the power cable

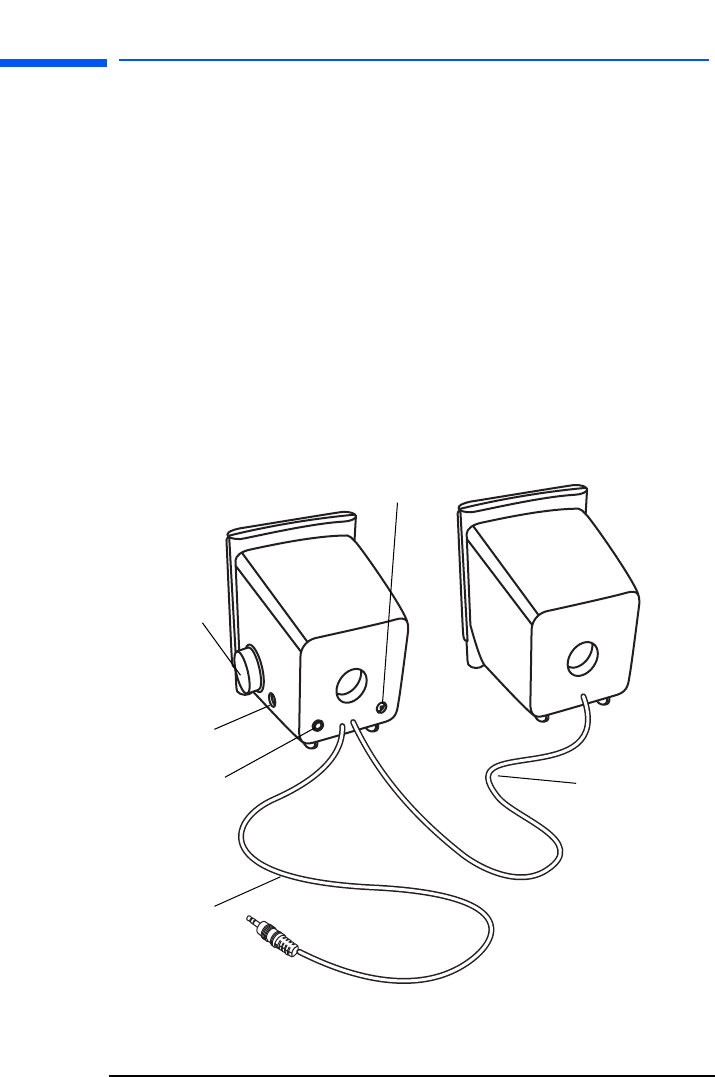

Speaker
power connector
On/volume
control
Headphone
connector
Subwoofer
connector
Stereo audio
cable
Audio cable
to left speaker
X
