hp pavilion f1503/f1703 LCD Monitor
Setting Up the Monitor
11 English
Setting Up the Monitor
Place the monitor on a flat, sturdy surface. Ensure that the operating
site is free from excessive heat and moisture. For best performance,
make sure nothing is resting on the monitor.
Connecting the power and video cables
Before you connect any cables or install the HP monitor, refer to the
safety instructions at the beginning of this manual. Refer also to the
documentation that came with the computer to ensure this equipment
is correctly installed.

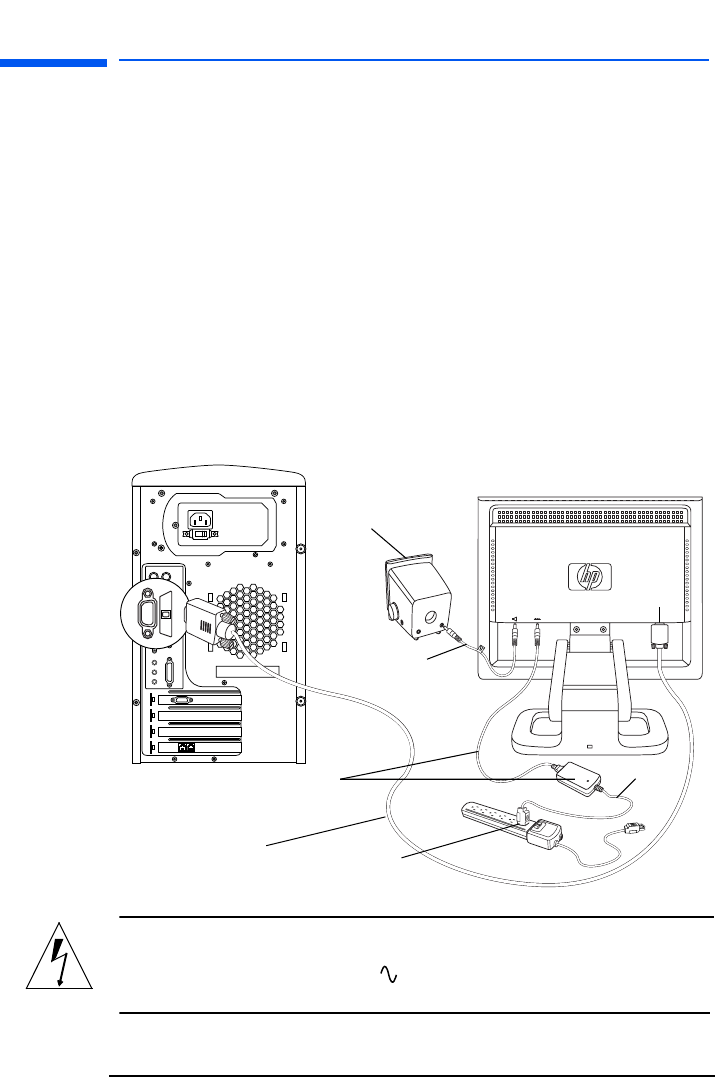

Look at the following diagram and follow the steps listed below
to connect the cables to the f1503 15-inch LCD monitor or the
f1703 17-inch LCD monitor.
CAUTION: These monitors are equipped with an
auto-sensing power supply for voltage ranges
100—240 V , 50/60 Hz. Use the monitor with
the supplied DC adapter only.
VGA
Speaker
Speaker
power cable
DC adapter
with attached
Video cable
(VGA)
Power
source
Power
cord
DC cable
X
