Instruction Manual

1. Icemaker
Icemaker Water
Supply Inlet
Minimum Icemaker
Water Supply Line Size
Icemaker / Ice
Storage Bin
Drain Outlet
Minimum Icemaker
Drain Line Size
1/2" Female Pipe
Thread (FPT)
1/4" Nominal ID Copper
Water Tubing or Equivalent
3/4" Female Pipe
Thread (FPT)
3/4" Nominal ID Hard
Pipe or Equivalent
• An icemaker water supply line shut-off valve and drain valve must be installed.
• Be sure there is sufficient extra water supply line and drain line for the appliance to be
pulled out for service.
Icemaker Water Supply
Inlet 1/2" FPT
Icemaker / Ice Storage Bin
Drain Outlet 3/4" FPT

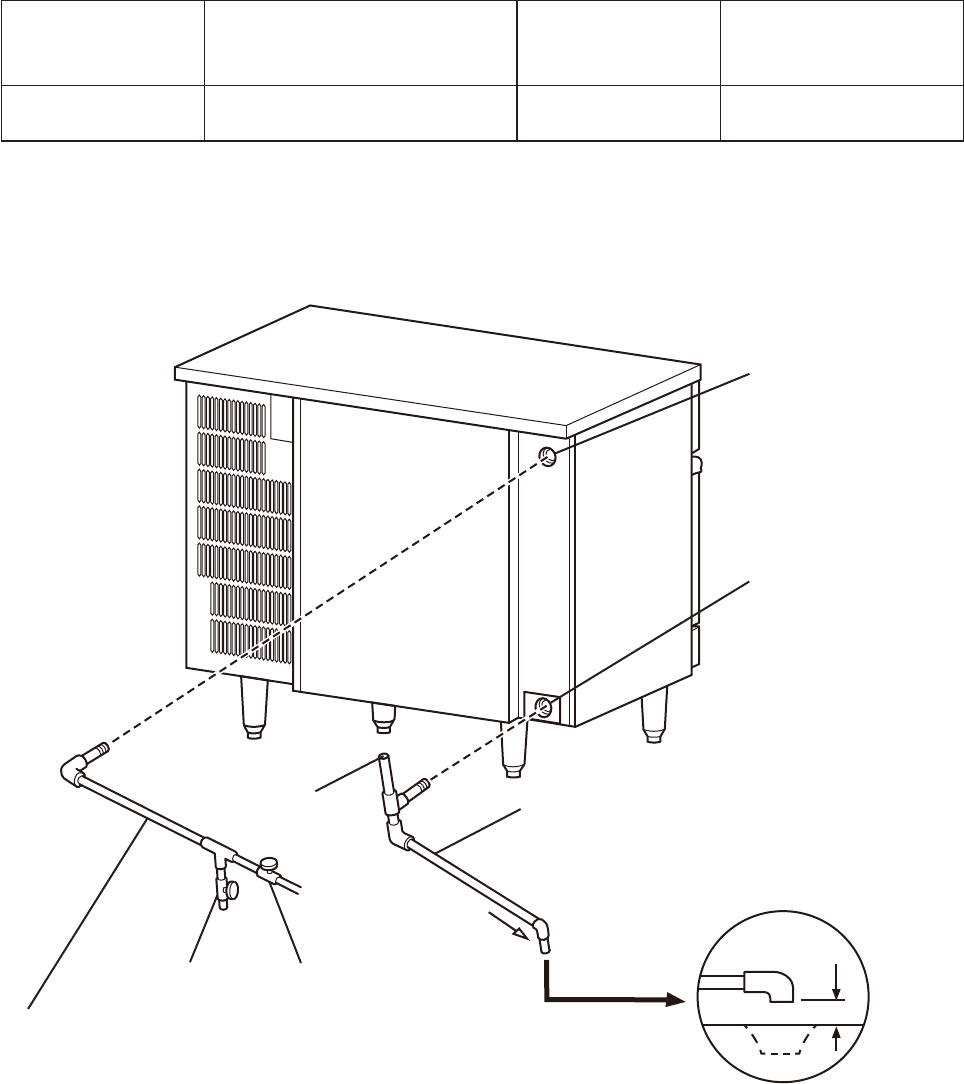

Fig. 4
To approved
oor drain
1/4" fall per foot
Shut-off ValveDrain Valve
Minimum 3/4" Nominal
ID Hard Pipe or
Equivalent
Minimum 1/4" Nominal ID
Copper Water Tubing or
Equivalent
Be sure there is sufficient
extra water supply line
and drain line for the
appliance to be pulled out
for service.
Separate piping to
approved drain. Leave a
2-inch (5-cm) vertical air
gap between the end of
each pipe and the drain.
Vent Tube
2-inch (5-cm)
air gap
Drain
Floor
14
