Installation Instructions

IO-10MIXR-WE / IO-10MIXR-NWE SMART IO
3 31-00427 | Rev.10-20

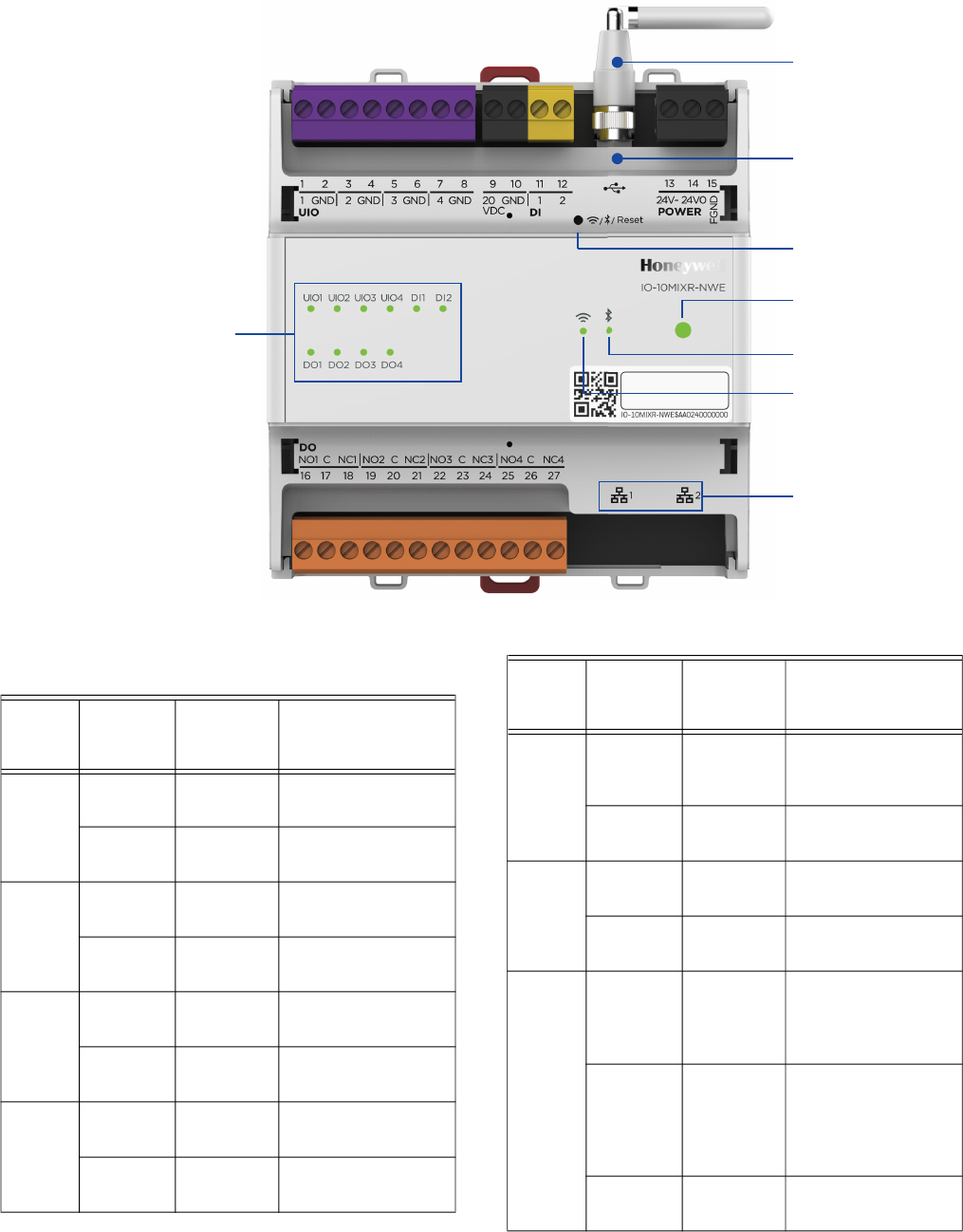

INTERFACES AND TERMINALS
28
29
30
33
34
35
32
31
Table 3. Device Terminals
Type
Termina
l
Number
Signal Description
UIO 1
1 1
Input/Output
signal for UIO 1
2 GND
Signal ground for
UIO 1
UIO 2
3 2
Input/Output
signal for UIO 2
4 GND
Signal ground for
UIO 2
UIO 3
5 3
Input/Output
signal for UIO 3
6 GND
Signal ground for
UIO 3
UIO 4
7 4
Input/Output
signal for UIO 4
8 GND
Signal ground for
UIO 4
20 VDC
Output
9 20V DC
20 Vdc power
supply output for
active sensors
10 GND
GND for 20 Vdc
and DI
DI
11 1
Digital Input for
channel 1
12 2
Digital Input for
channel 2
POWER
13 24V~
Power supply (for
24V AC, positive
terminal for 24V
DC)
14 24V0
Power supply
common (for 24V
AC, Negative
terminal for 24V
DC)
15 FGND
Earth ground in
the field
Table 3. Device Terminals (Continued)
Type
Termina
l
Number
Signal Description
