3.7 Return Loss Measurement for S11

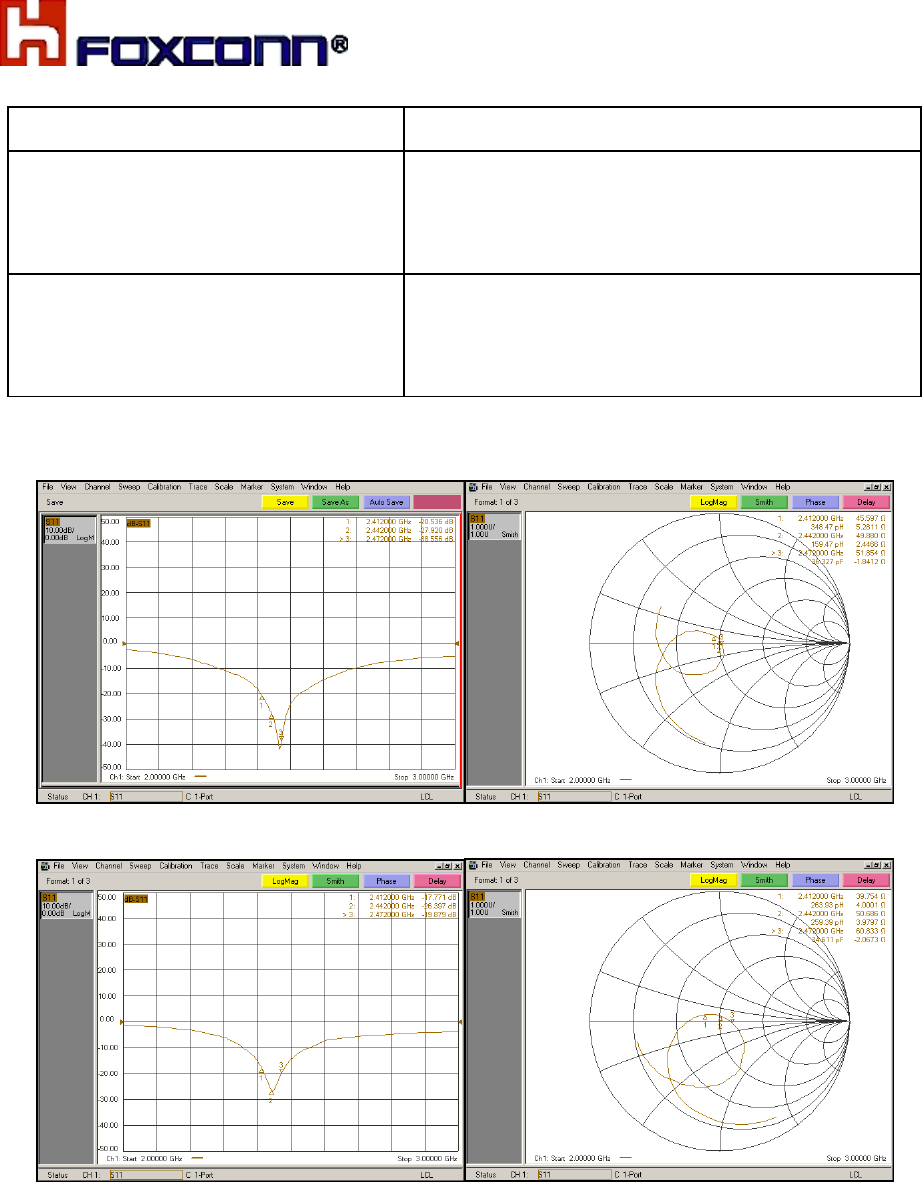

Return Loss Measurement for S11

Main antenna

-20.536dB@2412MHz

-27.920dB@2442MHz

-38.556dB@2484MHz

Aux antenna

-17.771dB@2412MHz

-26.397dB@2442MHz

-19.879dB@2484MHz

Main antenna

Aux antenna

Remark: the return loss measurement is base on air without any materials.
