Installation Guide
22 23
(A) 10" min-13" max
(B)
8-1/2" max
(Fig. 21)

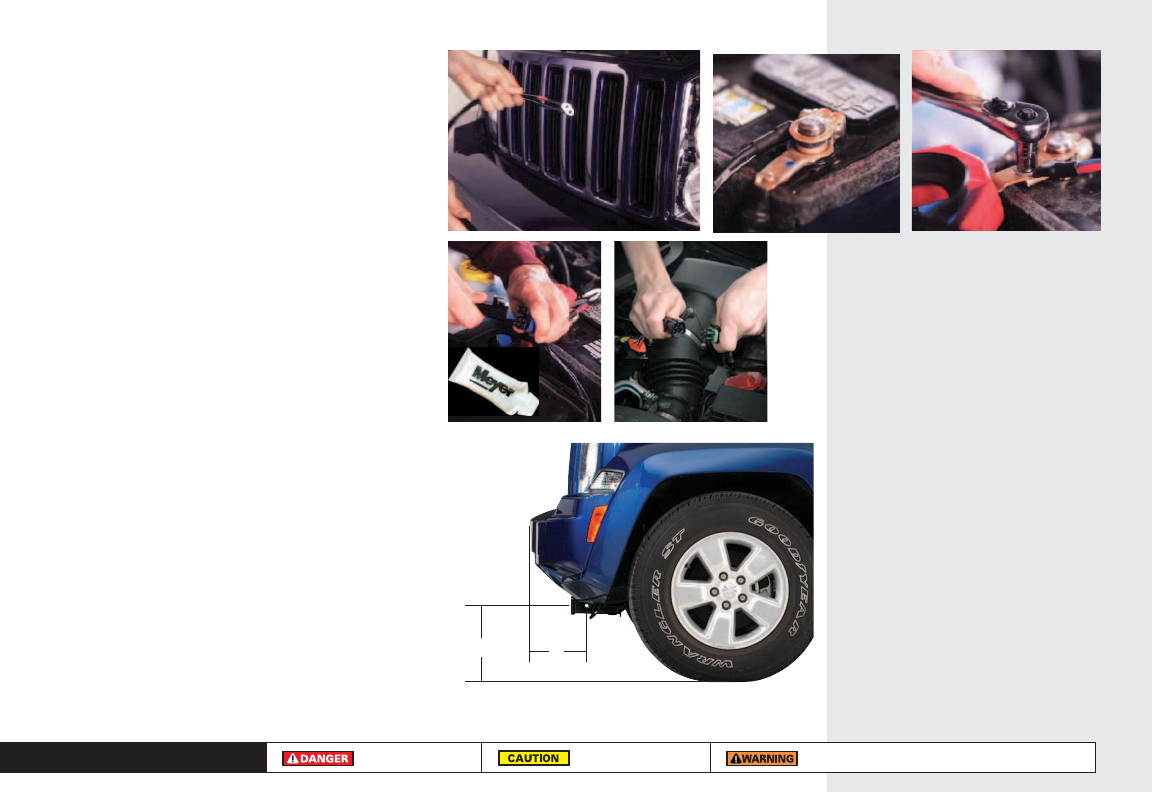

STEP 1
Carefully route the vehicle harness to the vehicle battery (g. 12). You
may need to route thru the grille or behind/under the bumper. Be sure to
stay away from hot, sharp or moving parts of the vehicle and use the zip
ties provided to secure. Attach the black wire to the negative (-) battery
post (g. 13) and the red wire to the positive (+) battery post (g. 14).
Coat connections with dielectric grease.
STEP 2
Add dielectric grease and carefully plug in receiver box (g. 15 & 16).
Carefully plug in receiver box and secure with zip ties (g. 16). Be sure to
stay away from hot, sharp or moving parts of the vehicle and use the zip
ties provided to secure.
STEP 3
Install your receiver hitch mount (sold separately, see hitch
requirements on pg. 4) per manufacturers instructions. Measure
center of square hitch to the ground. This dimension (A) should be a
minimum of 10" and a maximum of 13" (g. 21). Measure from the
hitch pin hole to the very end of your bumper. This dimension (B)
should be not more than 8-1/2" (g. 21). If your dimension does
not fall within these ranges you should contact your hitch dealer/
manufacturer for height or length adjustment accessories.
WIRING INSTALLATION – Electric Lift
Models 23200/23250 only
(Fig. 12)
(Fig. 14)
(Fig. 15)
(Fig. 16)
24, 25, 26, 27, 28
9, 20, 21
SAFETY PRECAUTIONS -
See pages 2-3 for denitions
23
(Fig. 13)
