PLOW ASSEMBLY

Electric Lift Assembly (Models 23200/23250) (cont.)

WIRING INSTALLATION – Electric Lift

Models 23200/23250 only

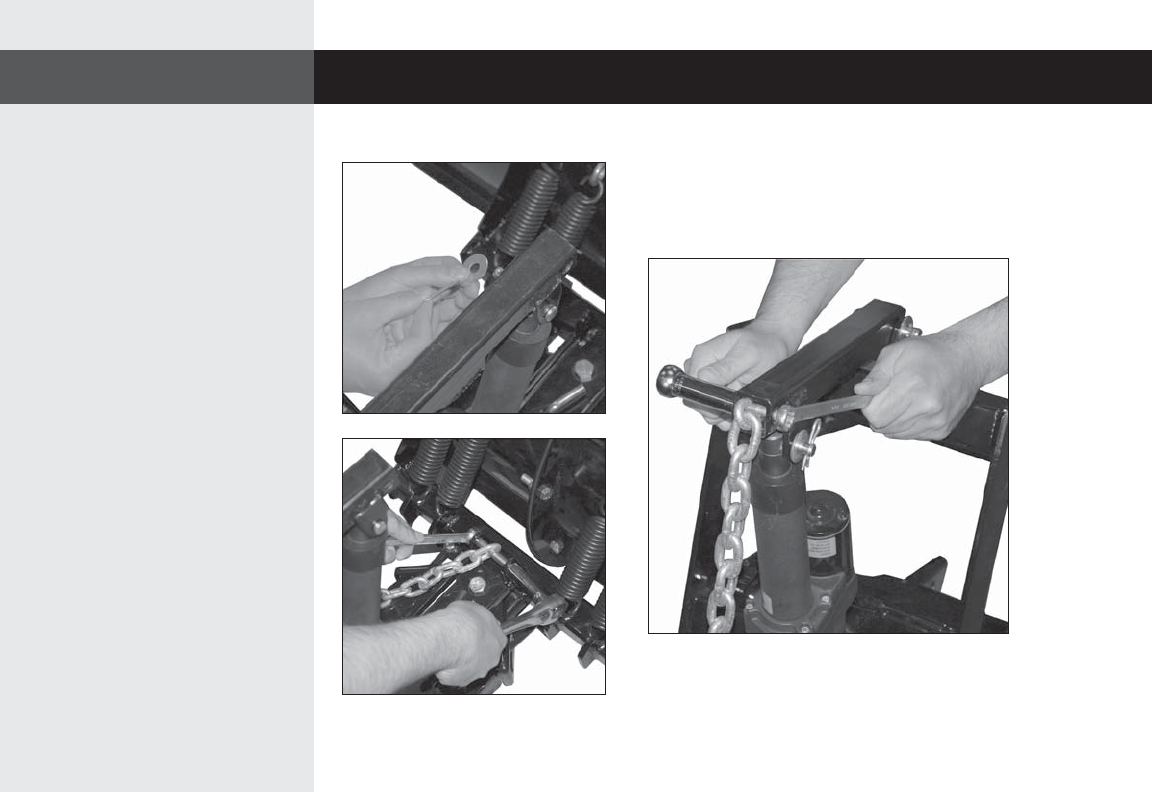

27.

Attach lift arm (Q) to linear actuator

(U) using ½ x 3" pin, ½" atwasher

and 1/8" hair pin cotter.

28.

Attach chain (T) to A-frame (N)

using one ½ -13 x 3-1/4" and

½-13 locknut. Tighten using

¾" box wrench and ¾” ratchet.

29.

Locknut. Tighten using 3/4" box wrench and 3/4" ratchet.

Note: Chain adjustment can be obtained by sliding

more chain links into the Lift Arm. (See page 29)

You are now ready to enjoy your new HomePlow.
