PLOW ASSEMBLY
Manual Lift Assembly (Models 23100/23150)

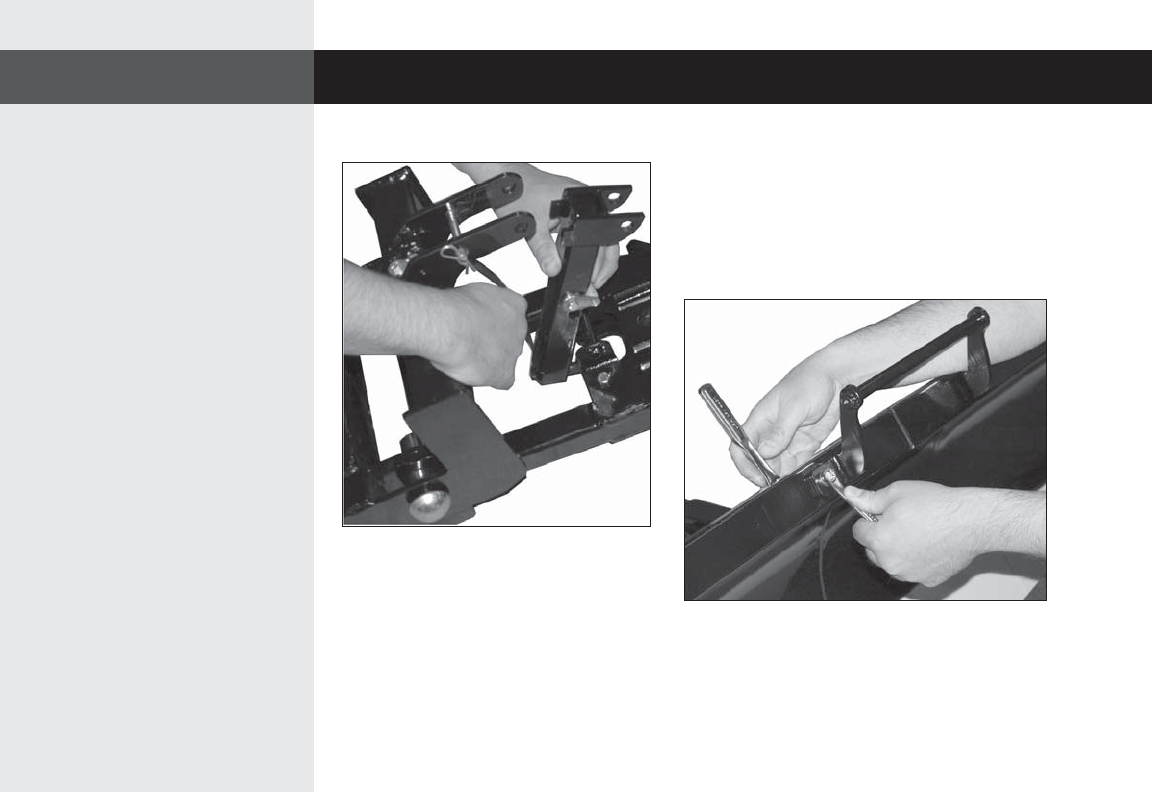

22.
Bend back manual leaf spring (T)
and insert manual latch weld-
ment (Q) to lift frame (L).
Attach using one 1/2-13 x 3-1/4"
and 1/2-13 Locknut. Snug using
3/4" box wrench and 3/4" ratchet.
23.
Attach manual handle (O) to moldboard using two
1/4-20 x 3/4", 1/4" atwashers and 1/4-20 locknut.
Tighten using a 7/16" box wrench and 7/16" ratchet.
Handle can be reversed for user preference.
20
Manual Lift Assembly (Models 23100/23150) (cont.)
You are now ready to enjoy your new HomePlow.
