Pivot Bar/Trip Spring/Moldboard Assembly/Plow Markers (cont.)
PLOW ASSEMBLY

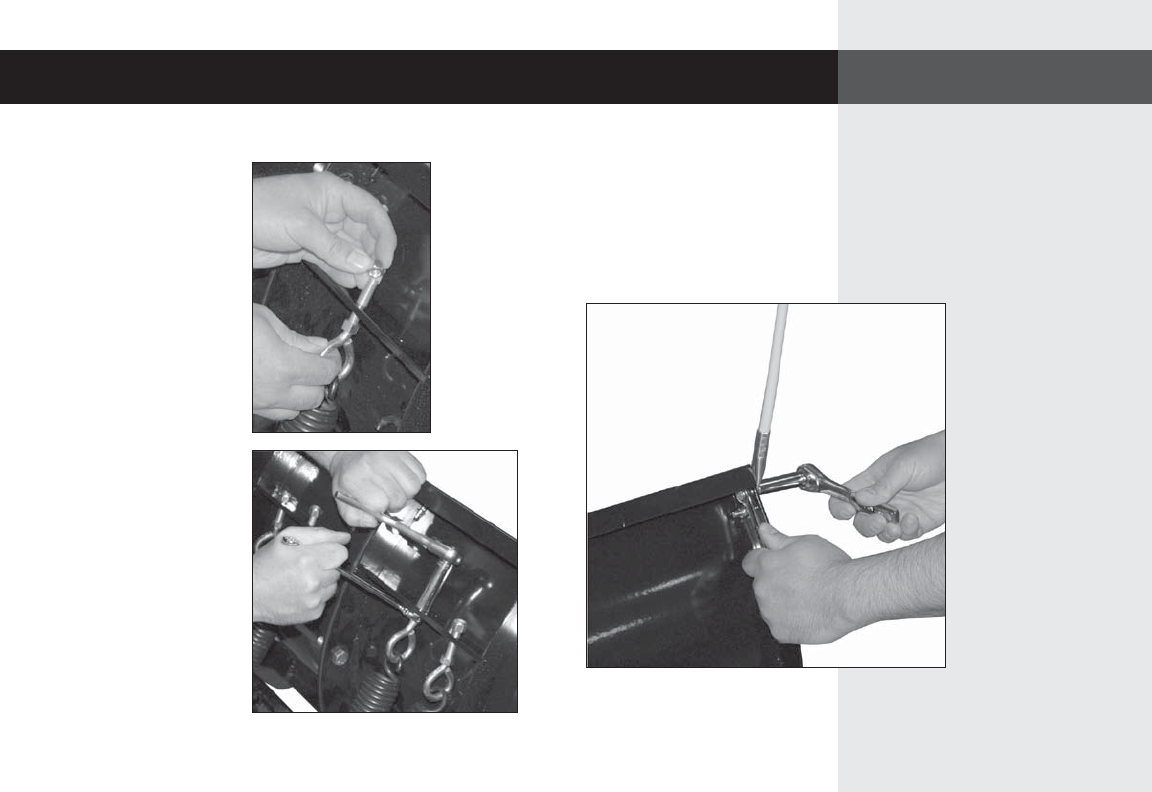

14.
Thread one 3/8-16 nish nut to
each eyebolt all the way to the
bottom. Attach eyebolts to each
trip spring and slide eyebolt into
the holes on the moldboard as
shown. Fasten eyebolt to
moldboard using 3/8-16 locknut.
15.
Use a crescent wrench or pliers
to hold the eyebolt in place and
tighten 3/8-16 Locknut using a
3/8” ratchet. Tighten until a piece
of paper can be placed in between
the spring coils. Then bring up the
3/8-16 nish nut to lock eyebolt.
Be sure the eyebolt is oriented
correctly to allow the trip spring
to hinge properly as shown.
16.
Attach plow markers (M) to
moldboard using four 5/16-18 x
1", 5/16' atwashers and 5/16-18
locknut. Tighten using a 1/2” box
wrench and 1/2" ratchet.
