User Manual

8/6/2016 Manual[lazyzero.de]
http://lazyzero.de/en/modellbau/kkmulticopterflashtool/manual 4/6

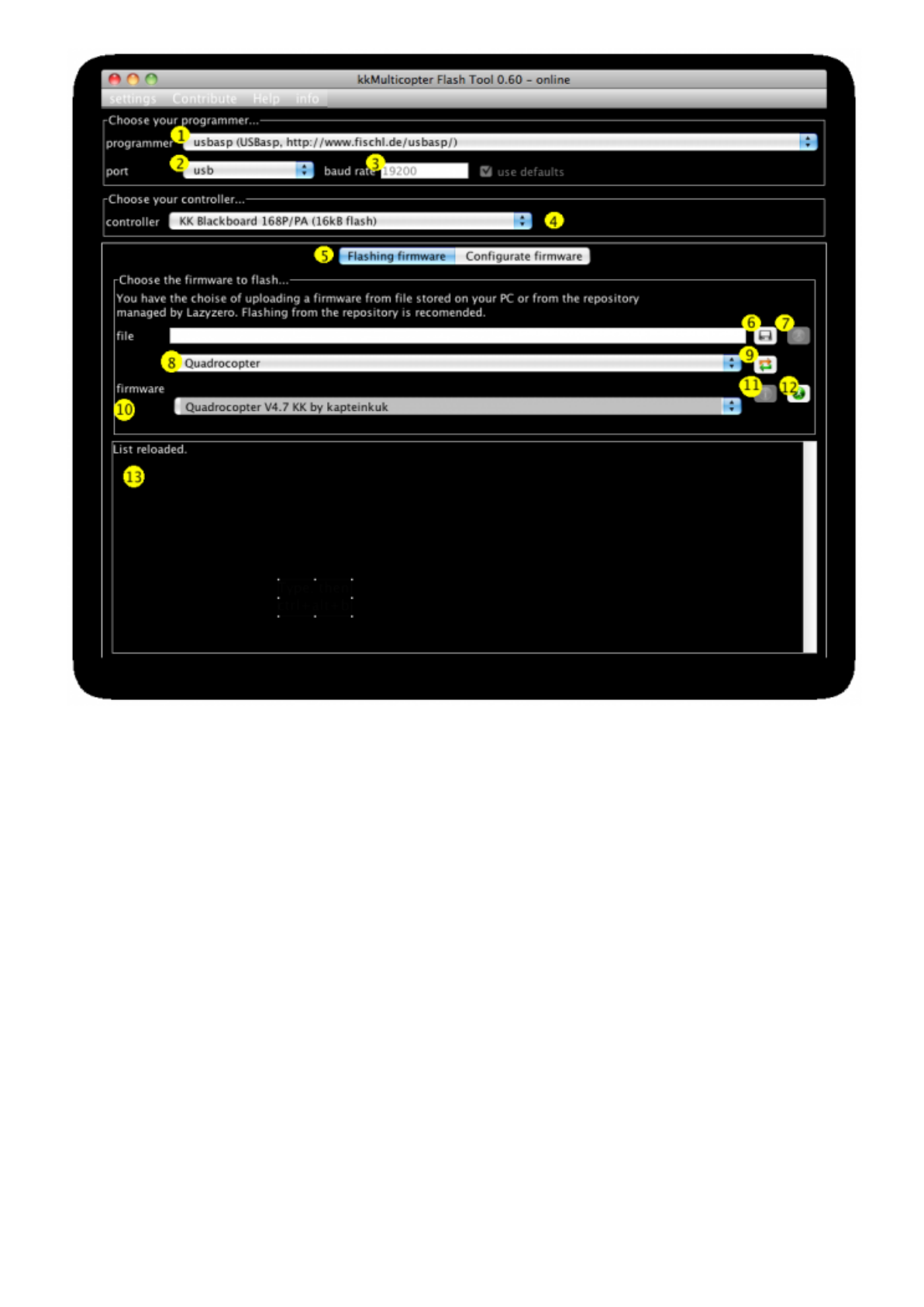

1. Select your ISP programmer.
2. This is the port your programmer uses. A lot of programmers have a USB plug, but
they are serial programmers. In this case select the correct serial port. Only avrisp
mkII, USBasp and USBtiny are real USB programmers.
3. For serial programmers you can change the default baud rate. Therefore you have to
enable the checkbox and change the value of the baud rate eld. Before changing the
baud rate it is recommended to rst try the default rate.
4. Select the board from the list of available boards. If it is not listed you can also select
only a µController from the end of the list.
5. In this area you can either select a rmware le in hex format from your le system or
one from the repository managed by me.
6. Press this button to select a rmware le from your PC.
7. After selecting a rmware the button will become enabled. Pressing the button will
write the rmware to the kk-board.
8. As an option you can lter the the available rmware versions through the repository
by selecting the type of rmware you want to ash, e.g. XCopter.
9. Pressing this button will reload the repository.
10. Here you can select the rmware you like to ash from the repository.
11. This button is enabled if there is a link to a webpage with more informations to the
selected rmware.
12. Pressing the button will write the rmware to the kk-board.
