10.4 Hot-water heating (Optional Extra)
The LPG heating system Compact 3010 is a hot-water hea-
ting system with a separate hot-water heater (contents: 8.5 l).
The heating system can heat up even if the hot-water heater
has not been lled with fresh water.

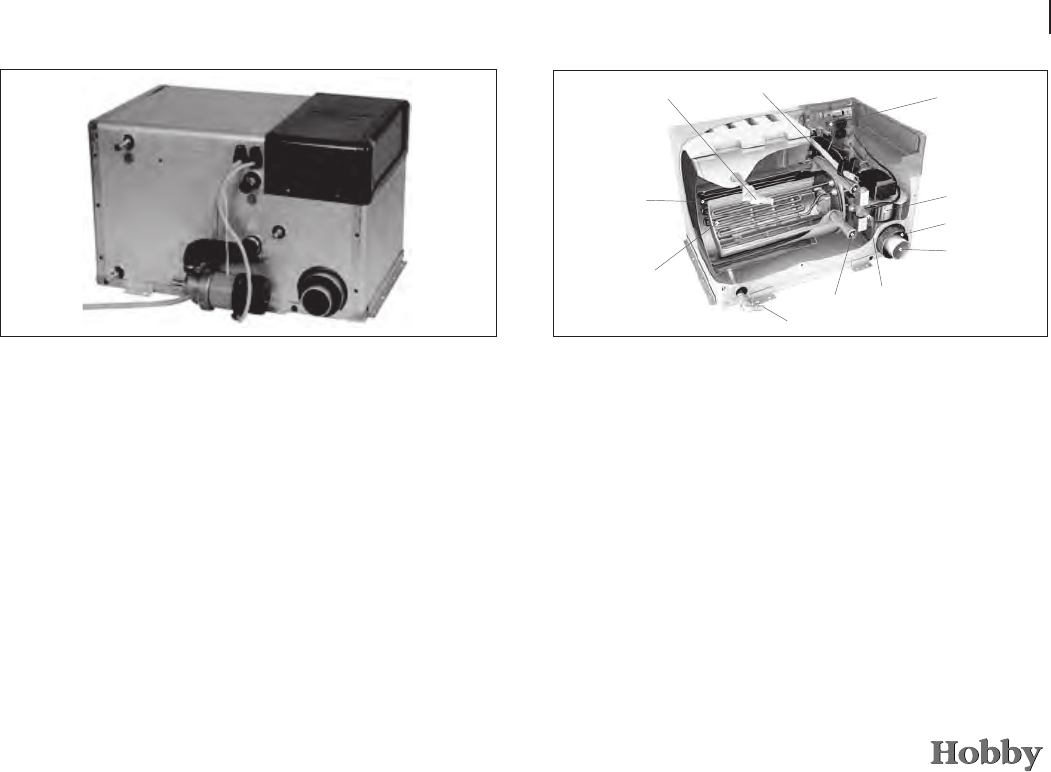

Place of installation
- in the clothes cupboard
Frischwasser aus
Glykolflüssigkeit Ausgang zu den Heizkörpern
Steuerkarte
Brennerlüfter
Luftzufuhr
Abgasauslass
Magnetventil
Glykolflüssigkeit Eingang Rücklauf
Frischwasser ein
Elektrische
Heizpatrone 1 kW
Elektrische
Heizpatrone 2 kW
Please note the following
Please read the separate operating instructions carefully
before initial use of the heating system.
Always switch the main switch for the heating system off
whenever the vehicle is not in use.
If there is danger of frost, always empty the fresh water out
of the hot-water heater.
The heating system may not be started if it has not been
lled with glycol.
To make the best possible use of the convection principle,
nothing must prevent the air from circulating in the motor
home, such as behind the back cushions, winter ventilati-
on, in the bed frames and behind the stowage cabinets.
