User Manual

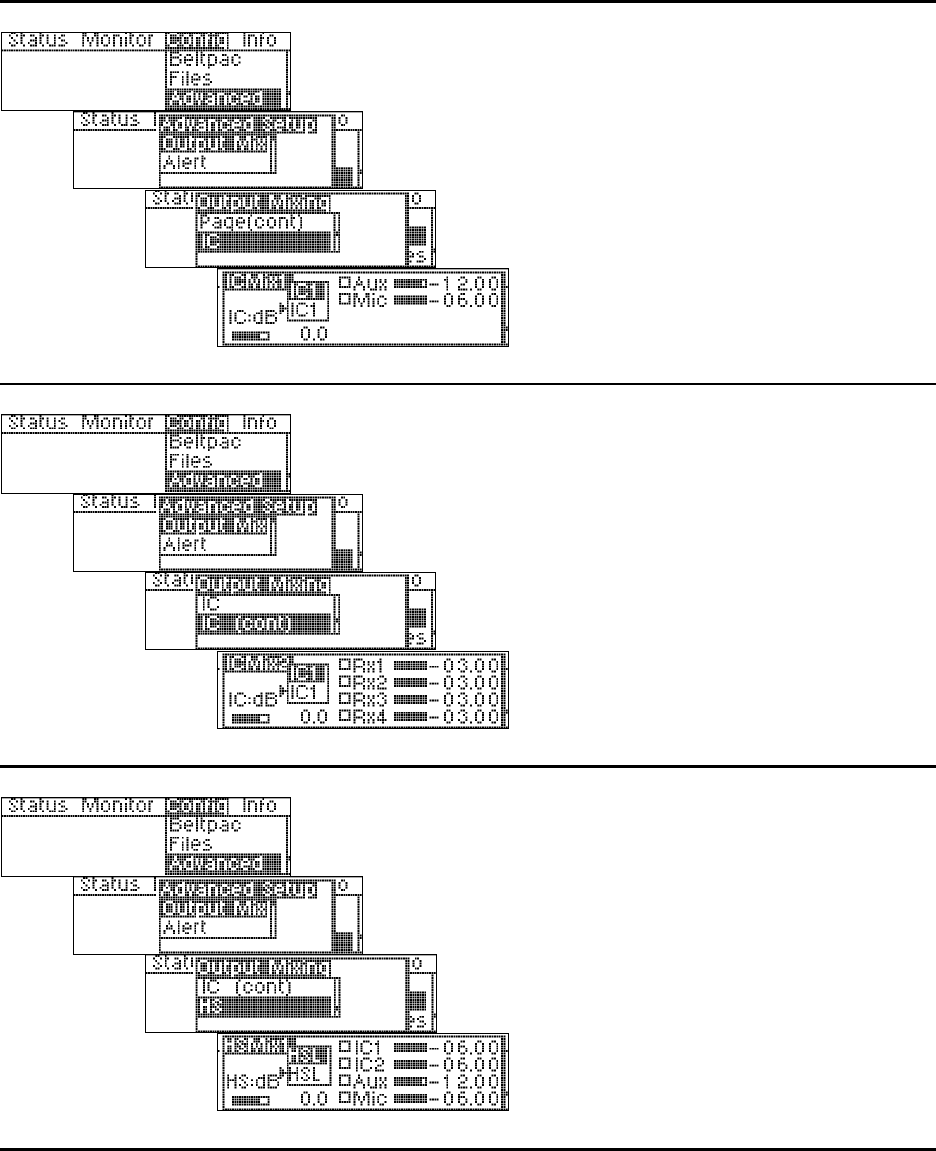

Intercom Output Mixing:

Select IC1 or IC2, then select the box next to Aux

and/or Mic to enable input. Use the control knob

to adjust output level in 0.25dB or 2.25dB

increments for the desired mix.

Place the cursor to the left of the bar below IC:dB

and use the control knob to adjust the overall IC

audio output level in 1.5dB increments.

Intercom Output Mixing (continued):

Select IC1 or IC2, then select the box(es) next to

RX1-RX4 to enable input. Use the control knob

to adjust output level in 0.25dB or 2.25dB

increments for the desired mix.

Check these boxes only if you want receiver audio

continuously fed to the Intercom Output. Leave

them unchecked for normal operation.

Place the cursor to the left of the bar below IC:dB

and use the control knob to adjust the overall IC

audio output level in 1.5dB increments.

Headset Output Mixing:

Select HSL (headset left) or HSR (headset right),

then select the box next to IC1, IC2, Aux and/or

Mic to enable input. Use the control knob to

adjust output level in 0.25dB or 2.25dB

increments for the desired mix.

Place the cursor to the left of the bar below HS:dB

and use the control knob to adjust the overall

headset audio output level in 1.5dB increments.
