User Manual

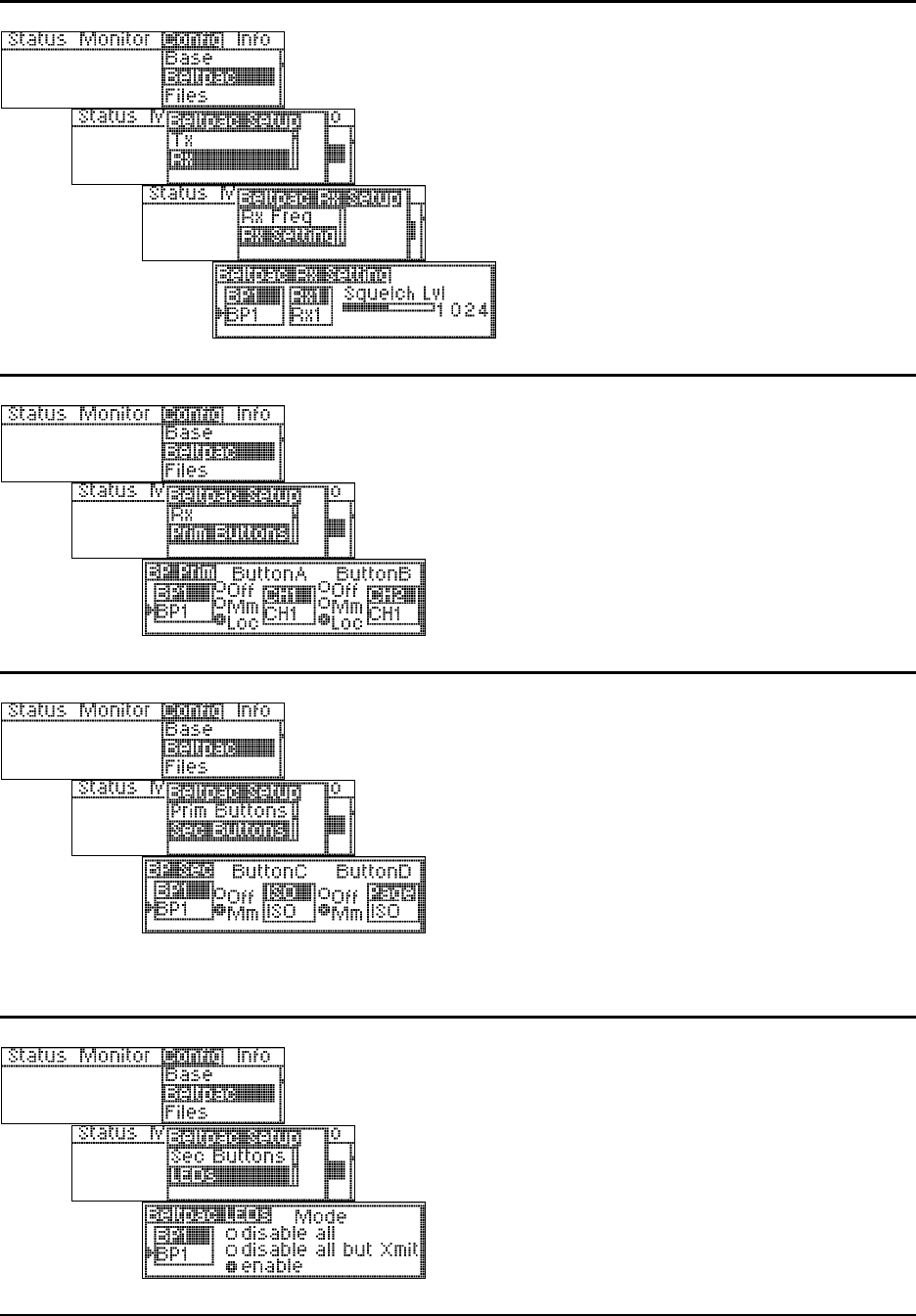

Beltpac Receiver Squelch Level:

Select the beltpac and receiver, then use the

control knob to adjust its squelch level.

NOTE: RX2 is reserved for a second receiver,

when a beltpac has two receivers.

BPCN is the beltpac that is plugged into the base

station, therefore adjustments to its squelch level

are effective immediately.

Beltpac Buttons A and B Setup:

Select the beltpac and select the desired functions

for Button A and Button B on each beltpac.

CH1 = Talk, Channel 1

CH2 = Talk, Channel 2

Curr = Talk, Current Channel

ISO = Talk, ISO/ISO+

Page = Talk, Page (Stage announce)

Aux = Talk, Auxiliary Out

Beltpac Buttons C and D Setup:

Select the beltpac and select the desired functions

for Button C and Button D on each beltpac.

ISO = Talk, ISO/ISO+

Page = Talk, Page (Stage announce)

Aux = Talk, Auxiliary Out

Chan = Toggle CH1/CH2

Call = Call Signal

Alert = Alert Signal

NOTE: Call and Alert Signals only function

while the Talk function is active.

Beltpac LED settings:

Select the beltpac and select the desired functions

the LEDs on each beltpac.
