Beltpac Transmitter Power:

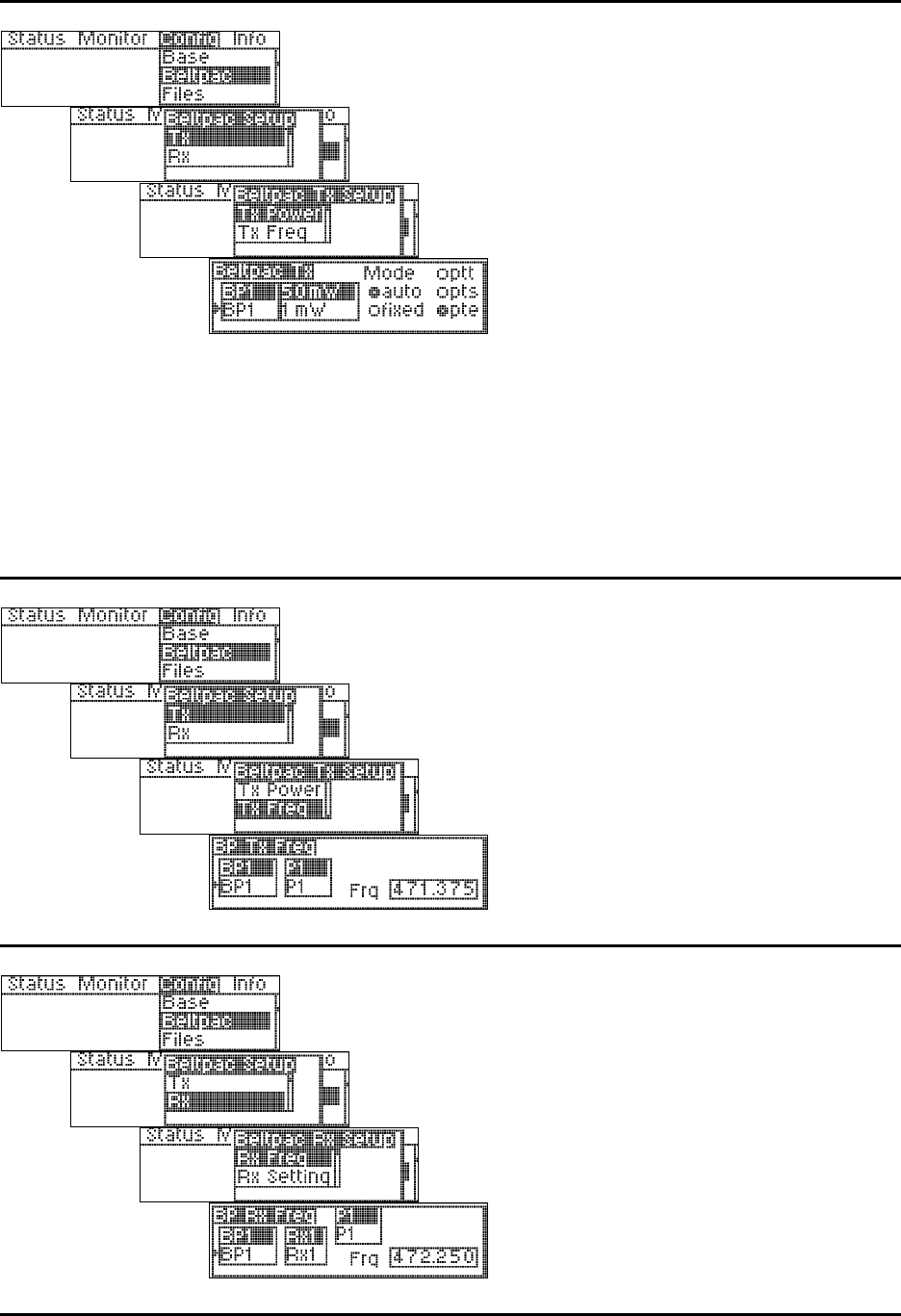

Select the desired beltpac and its transmitter

power level (1, 10, 50 or 100mW).

Select the transmit mode and press the ENTER

button.

NOTE: Settings for beltpacs B1-B16 are stored

in the base station. Changes to beltpac settings

will not be effective until they are uploaded to the

beltpacs. BPCN is the beltpac that is plugged into

the base station, therefore changes to its settings

are effective immediately.

In the auto mode, transmitter power will be

automatically controlled by the base station,

changing between 1 and the specified maximum.

In the fixed mode, the setting you select will not

change.

If you select ptt, the beltpac transmitter will be on

briefly every 5 seconds to transmit status. If you

select pts, the beltpac will only transmit while a

user is talking. If you select pte, the beltpac will

transmit constantly.

Beltpac Transmitter Frequency:

Select the desired beltpac and the transmitter

frequency for that beltpac’s operation (P1-12, S1-

12, T1-12 and U1-16. If U1-16 is selected, use

the control knob and the up and down arrow

buttons to select the desired frequency, in 25kHz

increments.

Beltpac Receiver Frequency:

Select the desired beltpac and the receiver

frequency for that beltpac’s operation (P1-4, S1-4,

T1-4 and U1-16. If U1-16 is selected, use the

control knob and the up and down arrow buttons to

select the desired frequency, in 25kHz increments.

NOTE: RX1 is for intercom CH1. RX2 is for

intercom CH2. Normally beltpac RX1 is the same

as base station TX1, and beltpac RX2 is the same

as base station TX2.
