Frequency Scan:

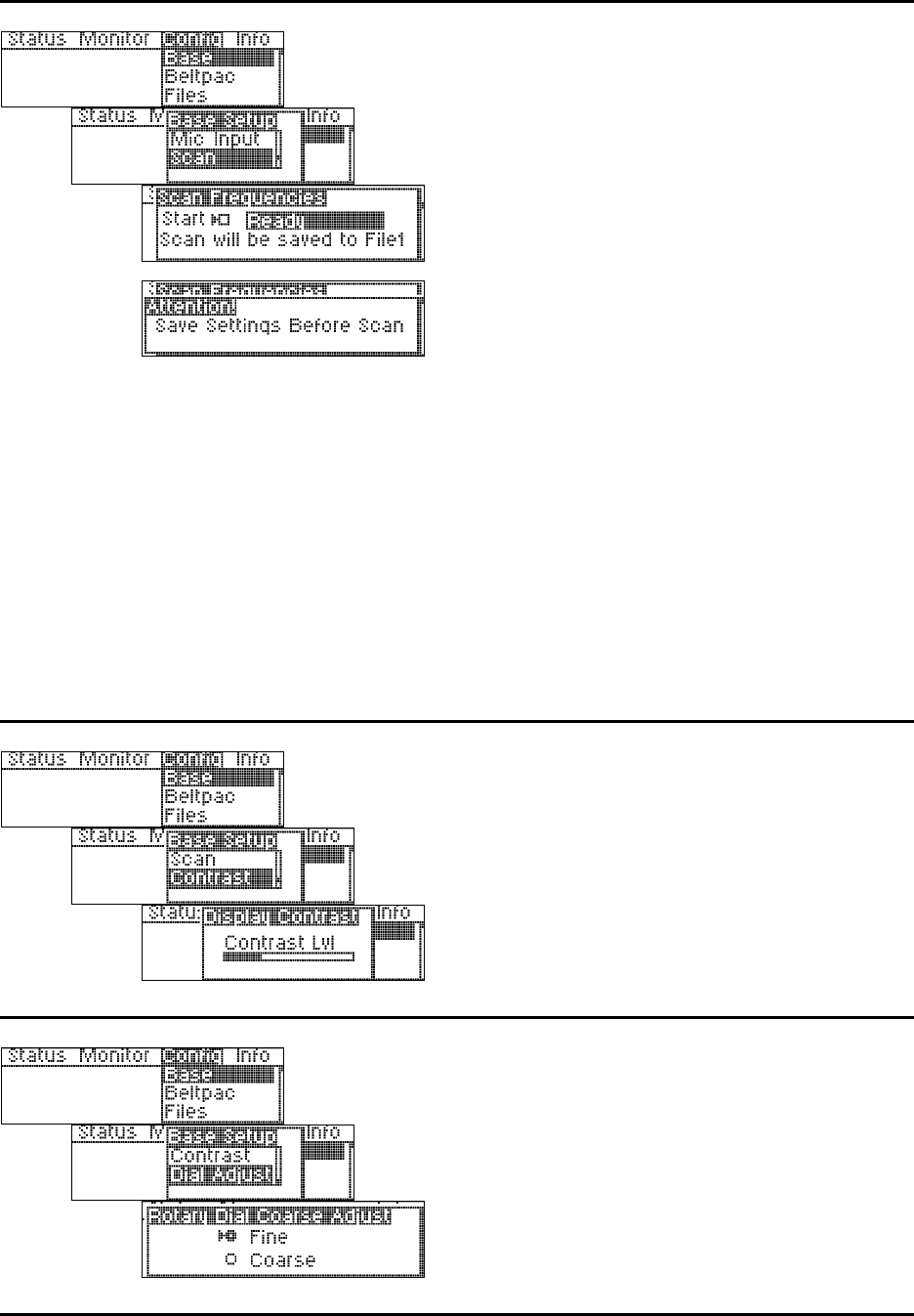

Connect a beltpac to the BELTPAC CONFIG
connector on the front panel of the base station to
enable scanning of base transmit frequencies.
In this operation, the beltpac and base station
receivers are scanned to find the cleanest group of
frequencies for the base station to transmit on, and
they are assigned to TX1 and TX2 in the base
station. Also, based on the number of receivers in
the system (up to 12), it determines the best group
of frequencies for the base station(s) to receive on.
Those frequencies are distributed (first-come,
first-served) to the beltpacs (with the assumption
that 16 beltpacs will be used) as beltpac transmit
frequencies. Beltpac receiver frequencies are
always the same as the base station TX1 and TX2
frequencies.
Beltpac frequency settings will not be operational
until they are uploaded to the beltpacs, which
should be done after completion of beltpac
configuration settings.
These settings will automatically be saved to File 1
as active settings for the base station until the
frequencies are scanned again. They can also be
saved to another file name for future use.
To begin frequency scanning, press the ENTER
button.
Base Station Display Contrast Level:
Use the control knob to adjust the base station
display screen contrast level.
Base Station Dial Adjustment Setting:
Select Fine or Coarse for the control knob, for mix
level dial adjustments. In the Fine mode, mix
level adjustments made by the control knob occur
in 0.25dB increments. In the Coarse mode, they
occur in 2.25dB increments.
