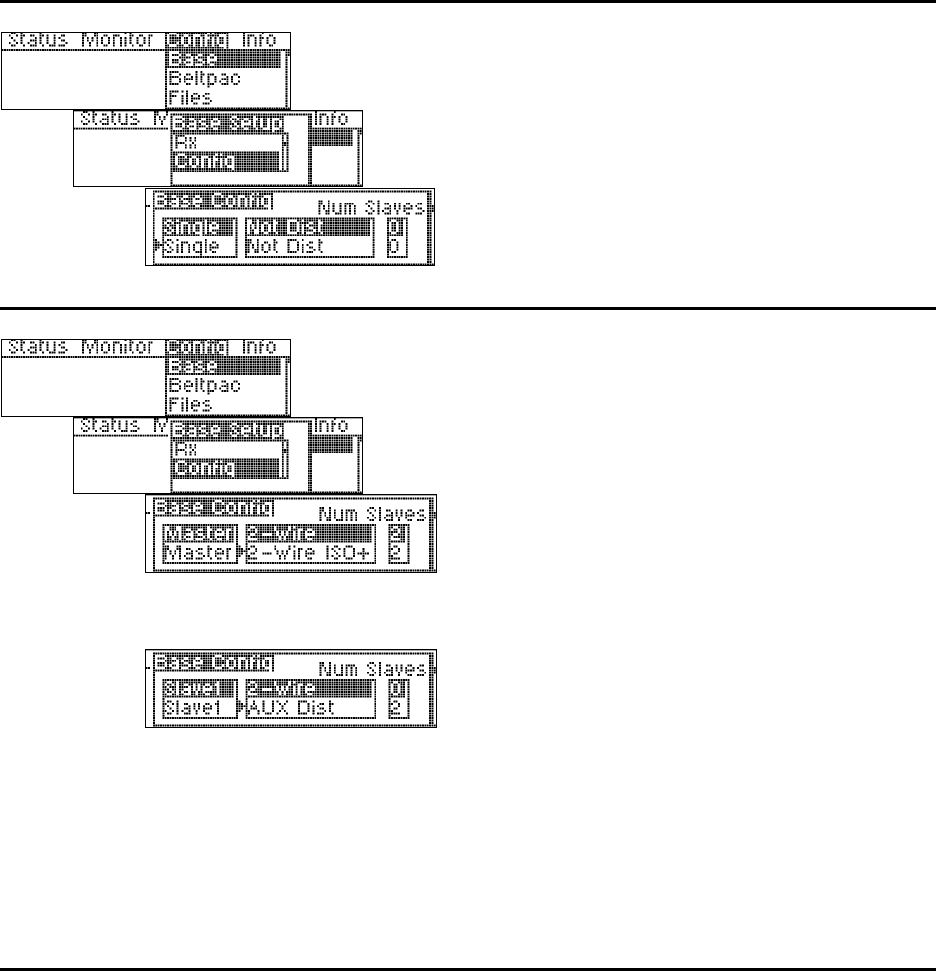

Single Base Station Configuration:
Select Single, Not Dist for a single base station
without the ISO+ feature for communication only
among beltpacs.
Select Single, ISO+ for a single base station with
the ISO+ feature for communication among
beltpacs and auxiliary input and output
(Aux In/Out) connections.
Master / Slave Base Station Configuration:
If Master and Slave base stations will be used,
there can only be one master base station, with
one or two slaves. Select Master, Slave 1 or Slave
2, then select the multibase wiring configuration;
2-Wire, 2-Wire ISO+ or Aux Dist.
Master:
In the 2-Wire ISO+ mode, beltpacs having a
button configured for Talk Aux must transmit
on frequencies for the master base station for
the feature to work.
Slaves:
In the Aux Dist mode, beltpacs on slave base
stations can only talk on the same channel at
once. If they try to talk on a different channel
than the user already talking, they will hear a
busy signal in their beltpac headset.
A slave cannot have slaves. Therefore, when
Slave 1 or 2 is selected, the Num Slaves
(number of slaves) will automatically be 0.
If a slave base station has a transmitter
installed, it must be turned off. See Base TX
setup.
