Operation Manual

5
(fortsättn. på nästa sida)
Inledning
Artikelnamn (fortsättn.)

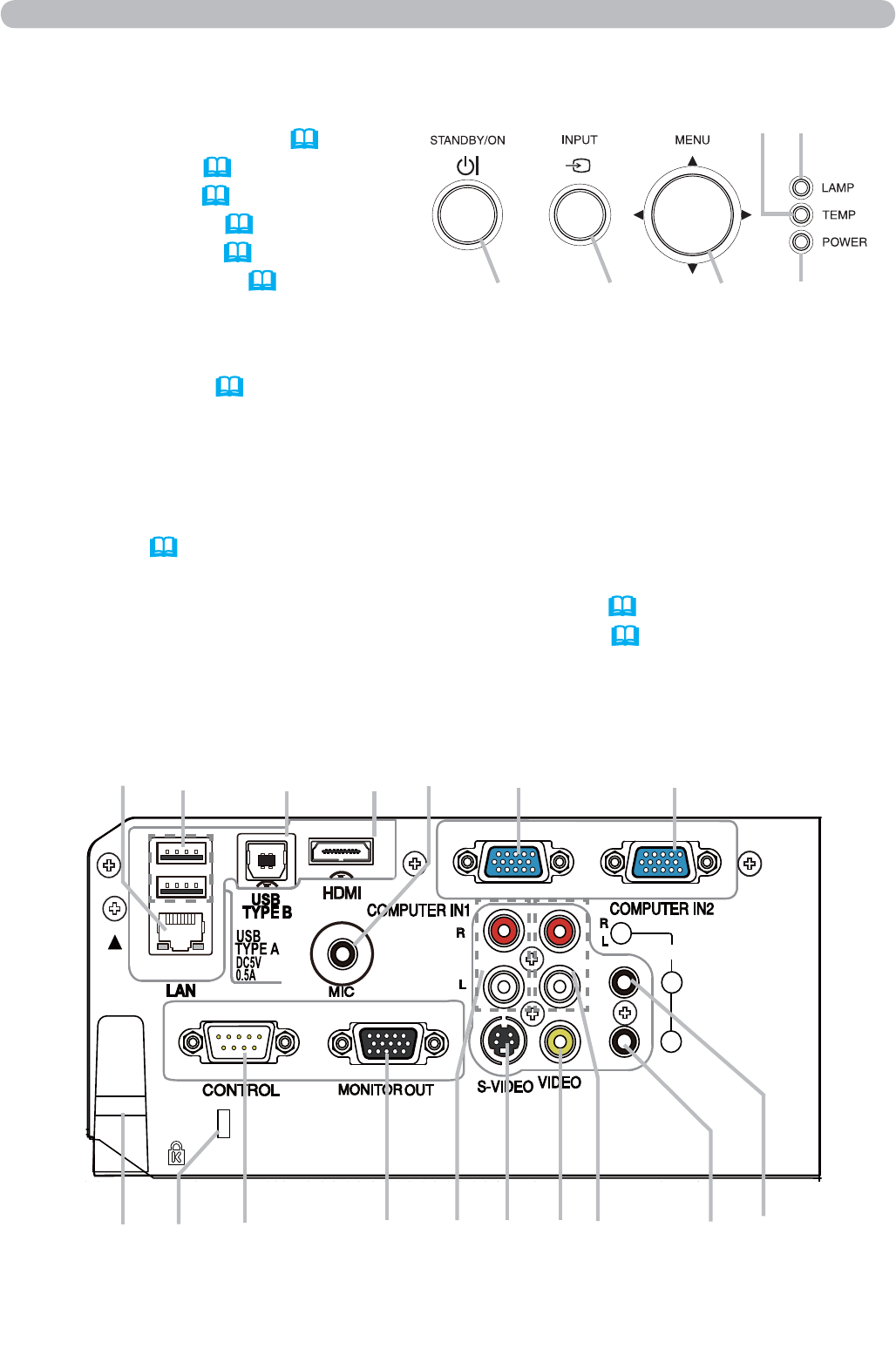

Baksidespanel (
10~15)
(1) LAN-port
(2) USB TYPE A-port (x2)
(3) HDMI-port
(4) USB TYPE B-port
(5) MIC-port (
15)
(6) AUDIO IN1-port
(7) AUDIO IN2-port
(8) AUDIO IN3 (L, R)-portar
(9) AUDIO OUT (L, R)-portar
(10) COMPUTER IN1-port
(11) COMPUTER IN2-port
(12) MONITOR OUT-port
(13) CONTROL-port
(14) COMPONENT-portar (Y,Cb/Pb, Cr/Pr)
(15) VIDEO-port
(16) S-VIDEO-port
(17) Säkerhetsurtag (
17)
(18) Säkerhetsbygel (
17)
Manöverpanel
(1) STANDBY/ON-knapp (
21)
(2) INPUT-knapp (
24)
(3) MENU-knapp (
32)
(4) LAMP-indikator (
115)
(5) TEMP-indikator (
115)
(6) POWER-indikator (
115)
(1) (3)(2) (6)
(4)(5)
AUDIO IN
1
2
3
AUDIO OUT
(11)(10)(4)(3)(2)
(5)
(8)
(16)
(7)
(9) (14)
(13)
(12)
(1)
(15) (6)
(17)
