User Guide

Installation on the plasma display
Perform installation according to the following steps 1 to 3.
NOTE:
After this unit has been installed on the plasma display, you can't use the display operation panel. Please use the remote control
supplied with the display.

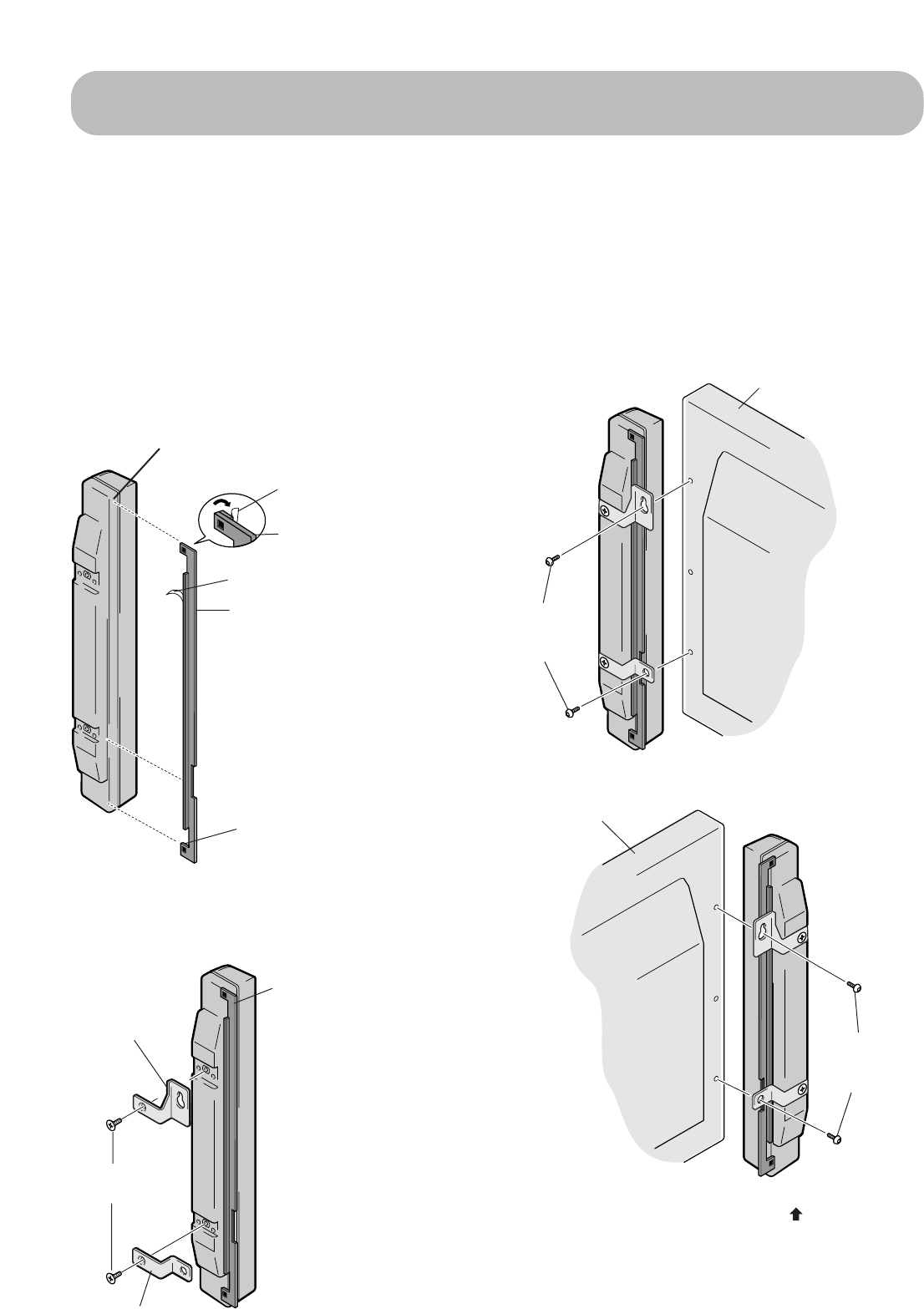

1. Attach the mounting plates to this unit
As in the illustration below (right speaker only), when looking
from the rear, attach the right mounting plate to the right hand
side of the right speaker. For the left speaker, attach the left
mounting plate to ther left hand side.
Adjust the mounting plate to about 0.5 cm
below the upper edge of the speaker.
Seal
Mounting plate
Seal
Mounting plate
1. Match the speakers and the
mounting plates so that the
correct combination of left and
right is obtained.
2. Peel the seals from the adhesive
surfaces of the mounting plates.
3. Confirm the installation position
and attach the mounting plate to
the inside of the speaker.
Seal
2. Install the mounting fittings on this unit
The illustration shows an example for this unit (right side).
For top side
Flat countersunk
head screw
Mounting plate
1 The top side fittings are
different for the right and the
left side, and they must be
matched correctly.
2 Install the mounting fittings
with bolts at the positions
shown in the figure on the
left.
For bottom
3. Install this unit on the display side
Install the unit marked "RIGHT" on the right side of the
display.
Plasma display
Hexagon
socket head
screw
Install the unit marked "LEFT" on the left side of the display.
1. Check the indications LEFT and RIGHT at the rear of the
speakers, observe the indication "UP ", and fasten the
upper mounting fitting provisionally to the display. Then
install the lower fitting on the display.
2. Adjust the position so that the gap between the speaker
and the display is uniform, and then tighten the screws
firmly.
Hexagon
socket head
screw
Plasma display
47
En
