Operation Manual

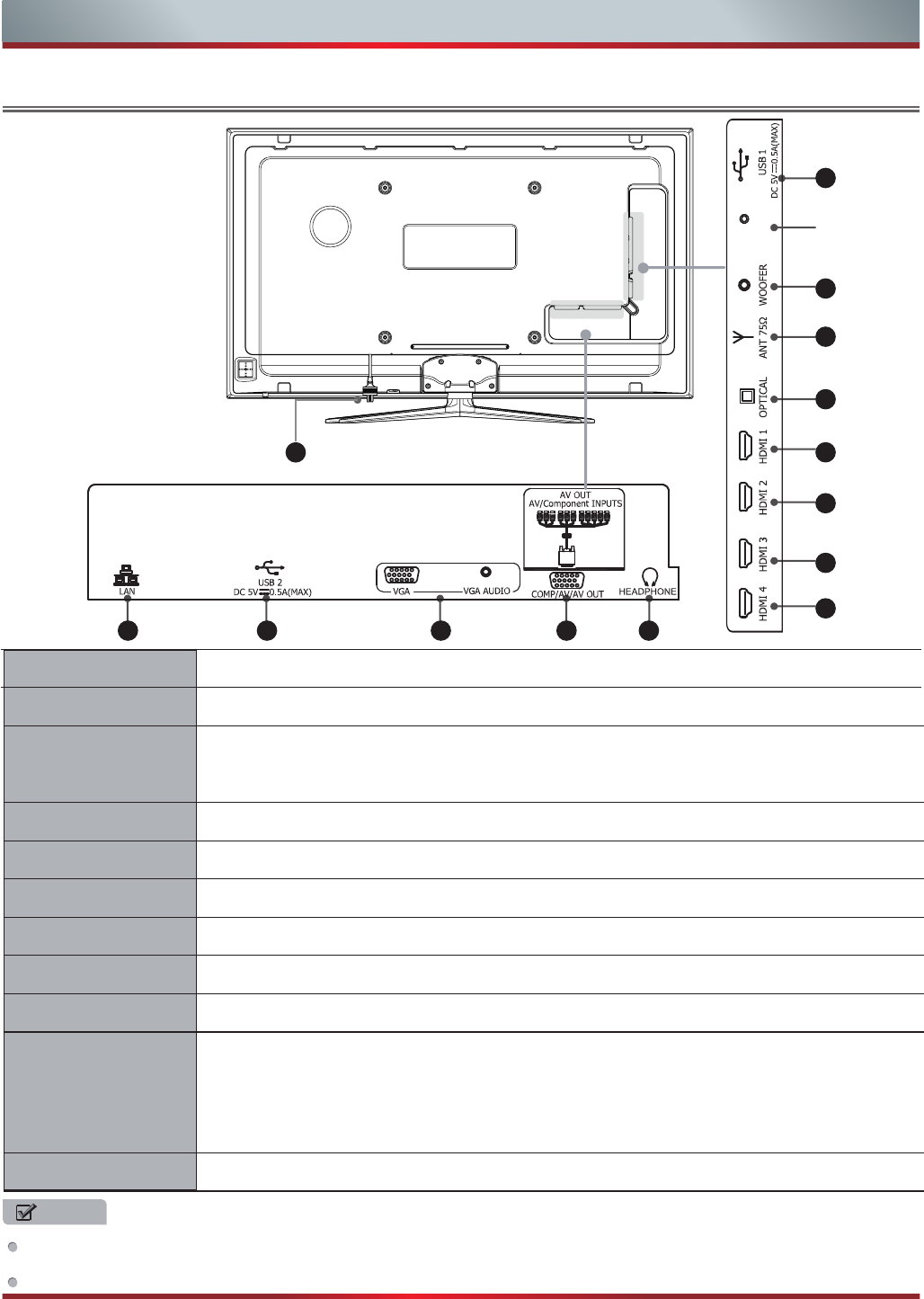

Rear View and Jacks
1.MAINS Connect the mains cable to the mains socket.
2.HDMI1/2/3/4
HDMI ( High-Definition Multimedia Interface)provides an uncompressed, all digital audio/
video interface between this TV and any HDMI-device, such as a set- top box, blue-ray disc
player, and A/V receiver.
8.VGA/VGA AUDIO
Connect to a PC or other devices with a VGA interface.
4.ANT
Connect to the aerial socket on the wall with the RF coaxial cable.
6.USB1/2
Allows the insertion of a USB storage device to play video, audio, photo and text files .
3.OPTICAL
Connect to an external digital audio device.
9.COMP/AV/AV OUT
Connect to the composite video and audio(L/R) output jacks on external video devices with
a switch cable.
Or connect to the component(YPBPR)video and audio output jacks on the DVD player,
Digital Set-Top-Box, or other AV devices with a switch cable.
Or connect to the video and audio(L/R) input jacks on the external video devices with a
switch cable.
Item Description
7.LAN
You can set up your TV so that it can access the Internet through your local area network
(LAN) using a wired connection.
11
5.WOOFER
Connect external bass box.
Getting Started
2
2
2
2
3
4
5
6
7 6 8 9 10
1
10.HEADPHONE
Connect earphones for private listening.
NOTE
When Wi-Fi is working, only USB1 terminal on the side can be used if you want to connect external device to the USB
on the TV.
Don’t insert any equipment into the DEBUG terminal.
DEBUG
just for factory
used
