User Manual

B6. Replace foot plate
B7. Replace lock ring
B8. Replace handle
Re-assemble pump in reverse order
Note; All items (2,3,4 & 9) must be clean and dry before re-assembly. DO NOT apply
silicone grease to any of these items

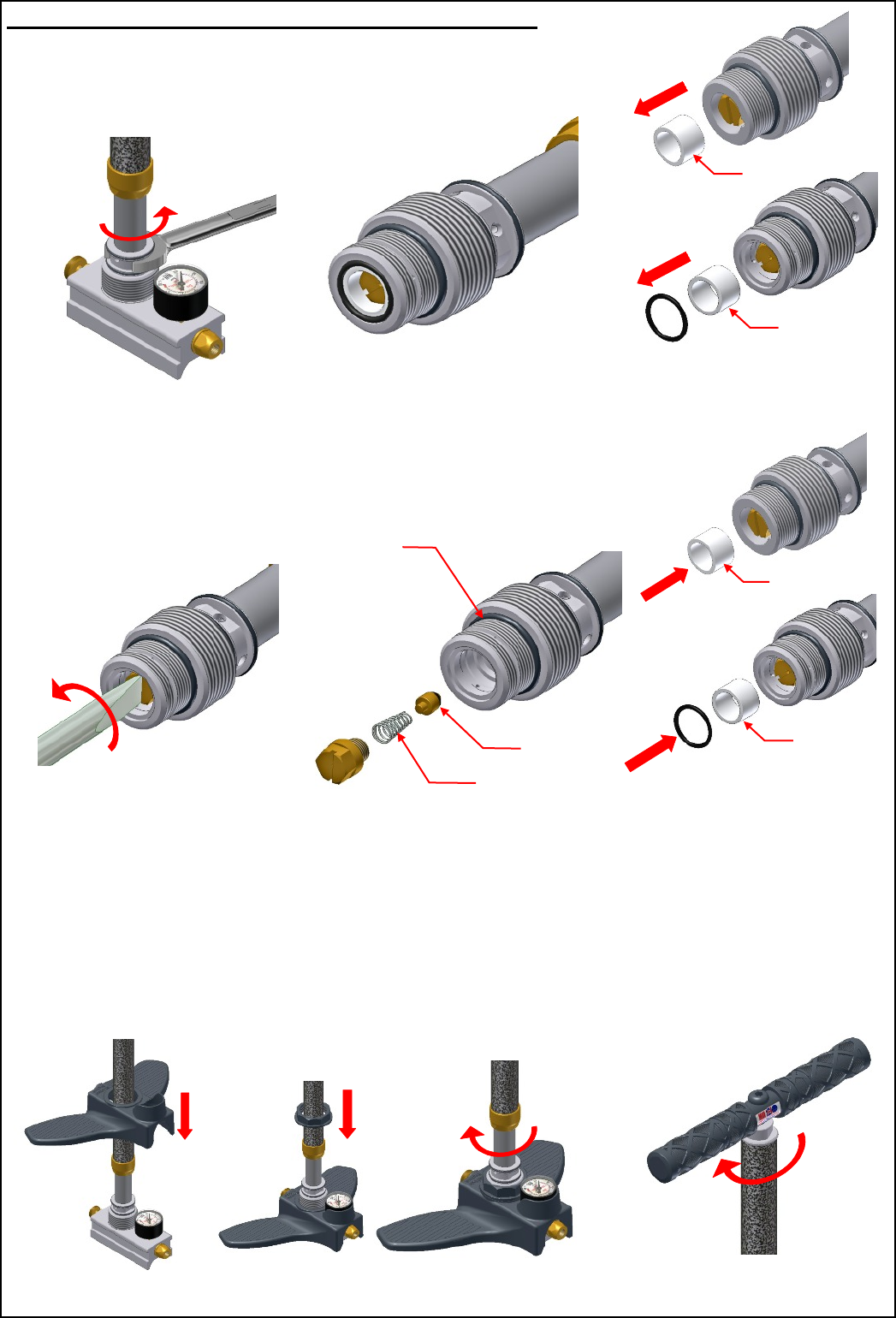

Micron Filter & Non Return Valve Replacement
B1. Unscrew Non Return Valve Housing
and remove from Manifold Block
25mm A/F
B2. Remove Micron Filter (Item 4)
using long nose pliers
Item 4
Retain this o’ring for re-assembly
as it is not included in the kit
Item 4
Original version
of pump (No o’ring)
Latest version
of pump
Note: The inclusion of this o’ring has NO EFFECT
on the performance of the pump and is simply
a manufacturing change
B3. Unscrew Spring Retainer using
broad blade screwdriver or
13mm A/F hexagon socket
Item 1 & 2
Item 3
Item 9 Replace
only if damaged
B4. Remove spring retainer, spring
and non return valve spindle
and replace with new parts
Item 4
B5. Fit new micron filter
Item 4 and re-assemble
Item 4
Original version
of pump (No o’ring)
Latest version
of pump
