User Manual

ManualsBrandsHill ManualsAirgun AccessoriesMK4 Hand Pump Complete Seal Kit

Items 1 & 2

062128-02

06R00096

Item 3

06R13504

item 4

064128-17

Item 12

06R00554

Item 5

06R00531

Item 6

06R00528

Item 7 & 8

Item 9

06R00106

Item 10

06R00551

Hard

Item 11

06R00555

Soft

2 off

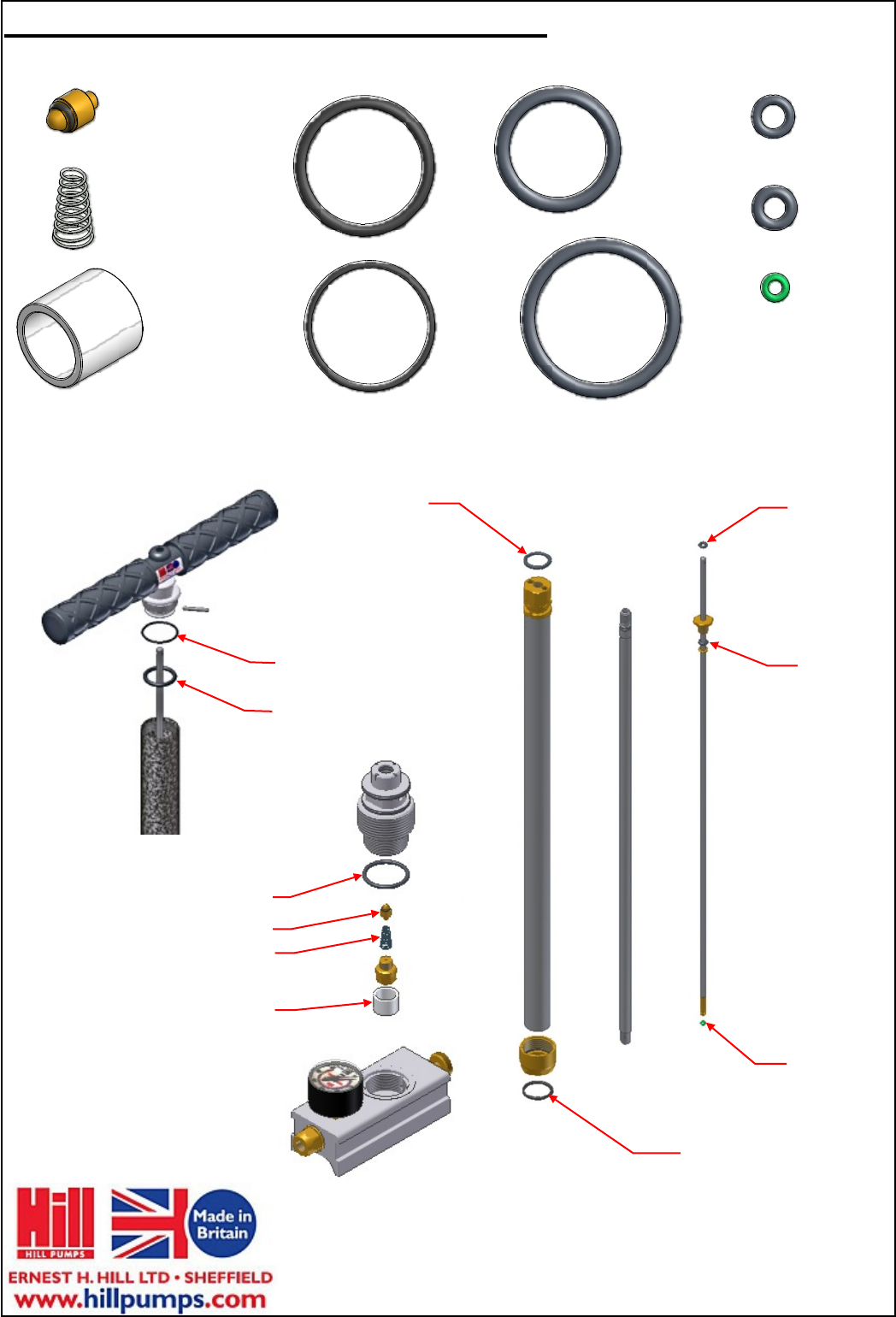

Z4128-401 Air Compressor Repair Kit

Item 6

Item 8

Page 1

Item 9

Item 1 & 2

Item 3

Item 4

Item 12

Item 11

Item 10

Item 7

Item 5

06R35074

06R00559

ERNEST H. HILL LIMITED

LONGACRE WAY - HOLBROOK - SHEFFIELD S20 3FS - ENGLAND

Telephone; +44 (0) 114 248 4882

www.airriflepump.com email; sales@hillpumps.com

Summary of content (4 pages)

PAGE 1
Z4128-401 Air Compressor Repair Kit 06R00559 Item 10 06R00551 Hard 2 off Items 1 & 2 062128-02 06R00096 Item 5 06R00531 Item 7 & 8 Item 11 06R00555 Soft Item 3 06R13504 Item 6 06R00528 Item 12 06R00554 Item 9 06R00106 item 4 064128-17 Item 7 Item 10 Item 6 Item 11 Item 8 Item 9 Item 1 & 2 Item 3 Item 4 Item 12 Item 5 ERNEST H. HILL LIMITED LONGACRE WAY - HOLBROOK - SHEFFIELD S20 3FS - ENGLAND Telephone; +44 (0) 114 248 4882 www.airriflepump.com email; sales@hillpumps.
PAGE 2
Piston Seal Replacement 20mm A/F 1. Unscrew and remove handle 2. Unscrew handle connector 3. Lift handle connector. Remove o’ring to expose pin. Use suitable tool to push pin from one side and then pull out. Ensure o’ring is securely located in groove on re-assembly. 30mm A/F 17mm A/F 24mm A/F 4. Unscrew outer body tube end cap and remove body tube Small Black Seal Item 11 Replace only if worn 5. Unscrew the ball / seal retainer use a separate spanner to hold the large hexagon below it.
PAGE 3
Inner Slide Tube Seal Replacement Remove tube assembly Ensure both balls are located in pockets Slide end cap from tube A1. Unscrew air exchanger valve A2. This will release inner slide tube from non return valve at the base manifold end Item 5 Carefully remove from groove and replace and apply a small amount of silicone grease on re-assembly A3. Replace O’ring - Item 5 Item 7 A4.
PAGE 4
Micron Filter & Non Return Valve Replacement Note: The inclusion of this o’ring has NO EFFECT on the performance of the pump and is simply a manufacturing change Original version of pump (No o’ring) Item 4 25mm A/F Latest version of pump Item 4 Retain this o’ring for re-assembly as it is not included in the kit B1. Unscrew Non Return Valve Housing and remove from Manifold Block B2.
