Network Traffic Camera • Quick Start Guide
13

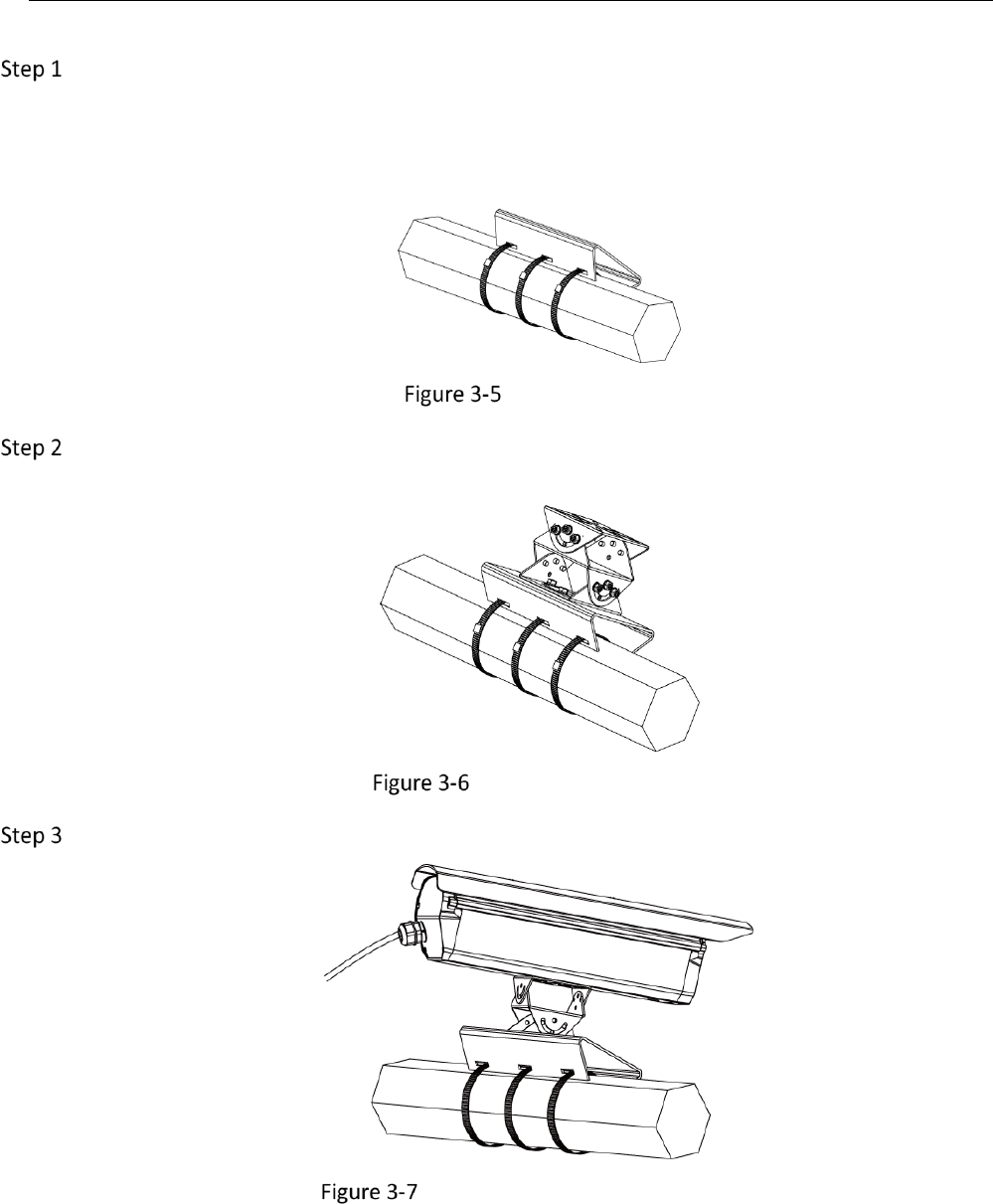

Install the hoop.
1) Loosen the hoop screws and open the hoop.
2) Pull the hoop ring, and shrink the hoop to the thickness of the horizontal pole.
3) Install the hoop bracket on the horizontal pole.
Install Hoop
Align the screw holes at the bottom of the cardan joint with the hoop, screw in, and tighten
the screws, to install the cardan joint on the hoop.
Install Cardan Joint
Fix the whole camera with sun shield on the horizontal pole with the cardan joint.
Fix Camera on Horizontal Pole
