Network Traffic Camera • Quick Start Guide
10
Trigger Position
5 m
5m
3. m
5 m
3.75 m
3.75 m
3.75 m
Lane 3
Pole Height: 6 m
Network Traffic Camera 1
26 m
Flash Light 3
26 m
Radar 3
5 m
3.75 m
3.75 m
3.75 m
5 m
Lane 2
Lane 1
Flash Light 2
Radar 2
Radar 1
Flash Light 1
Flash Light 4
Radar 4
Radar 5
Radar 6
Flash Light 5
Flash Light 6
Pole Height: 6 m
Network Traffic Camera 2
Lane 4
Lane 5
Lane 6
Trigger Position

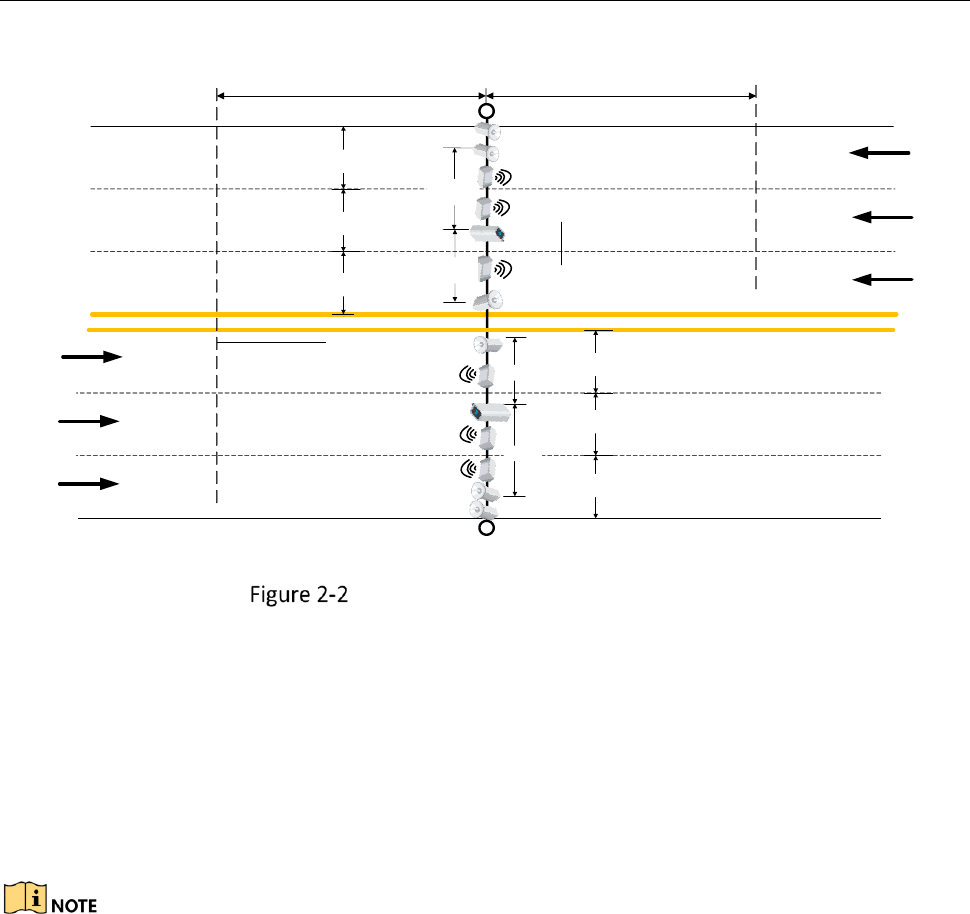

Construction Solution for 9 MP Camera
The pole height is 6 m. We recommend that captured position should be 26 m or above
horizontal distance from the camera to meet LPR requirement.
Flash light is built in the guard shield for light supplement of multiple lanes, improving license
plate capture and recognition rate.
The camera will capture multiple pictures continuously. To guarantee the second picture
quality, the picture bottom in captured position should be 18 to 20 m horizontal distance from
the pole.
Radar is used for speed detection.
