Chapter 2 Construction Solution

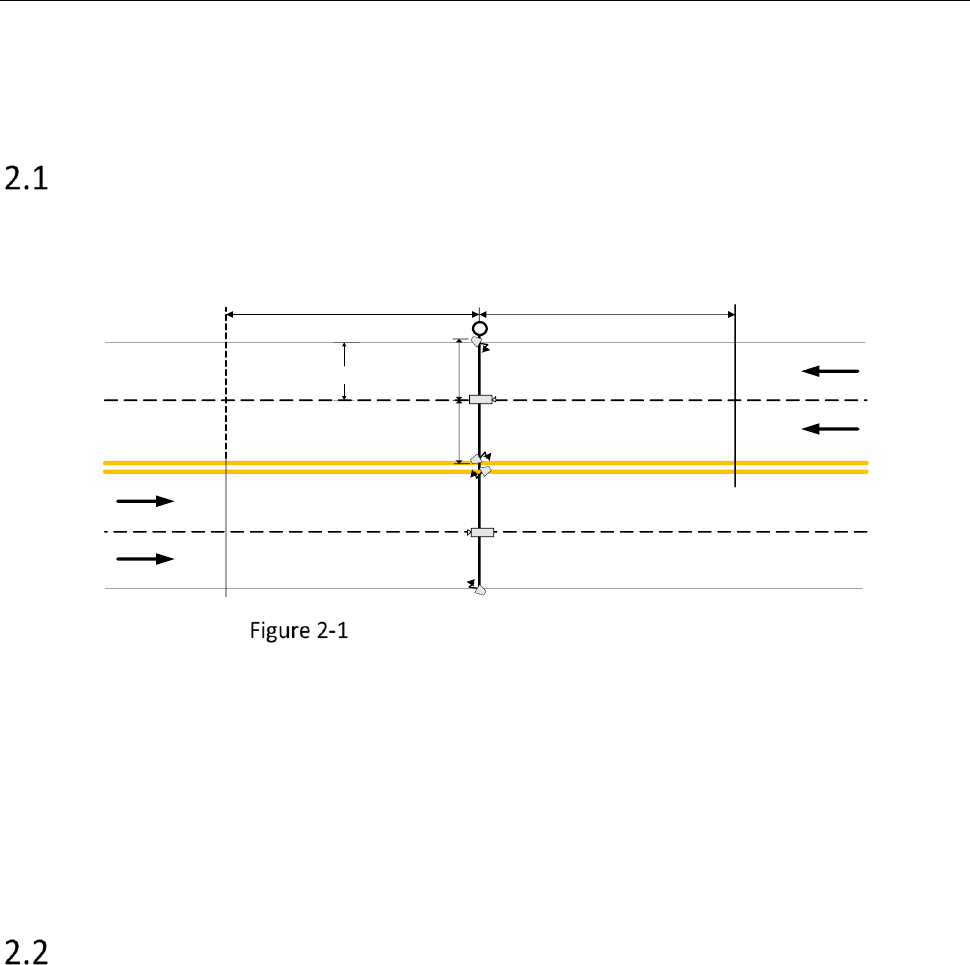

Construction Solution I
The following construction takes example of 3 MP camera in the scene of bidirectional 4 lanes
without speed detection.
Pole Height: 6 m
3.75 m
26 m
Flash Light 3
Network Traffic Camera 2
Lane 2
Lane 1
Lane 3
Lane 4
5 m
5 m
26 m
Flash Light 4
Flash Light 2
Network Traffic Camera 1
Flash Light 1
Construction Solution for 3 MP Camera
The pole height is 6 m. We recommend that captured position should be 26 m or above
horizontal distance from the camera to meet LPR requirement.
Flash light is built in the guard shield for light supplement of multiple lanes, improving license
plate capture and recognition rate.
The camera will capture multiple pictures continuously. To guarantee the second picture
quality, the picture bottom in captured position should be 18 to 20 m horizontal distance from
the pole.
Construction Solution II
The following construction takes example of 9 MP camera in the scene of bidirectional 6 lanes with
radar speed detection.
