Title:

How to use ATM DVR

Version:

V2.0

Date:

12/06/2019

Product:

ATM DVR、 Siwtch

Page:

1 of 15

No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788

E-Mail: support@hikvision.com • www.hikvision.com

Preparation

Devices: Switch DS-3E1310P-E, ATM DVR DS-8104AHQI-K4 firmware V3.5.57. Bulid 181203

Software: NetAssist，Serial Port Debug Assistant

NetAssist.exe

串口调试助手V2.2.

exe

In this case, we will test two work modes of ATM configuration, Network interception and Serial Port

Interception.

How to use ATM DVR

1. Network Interception

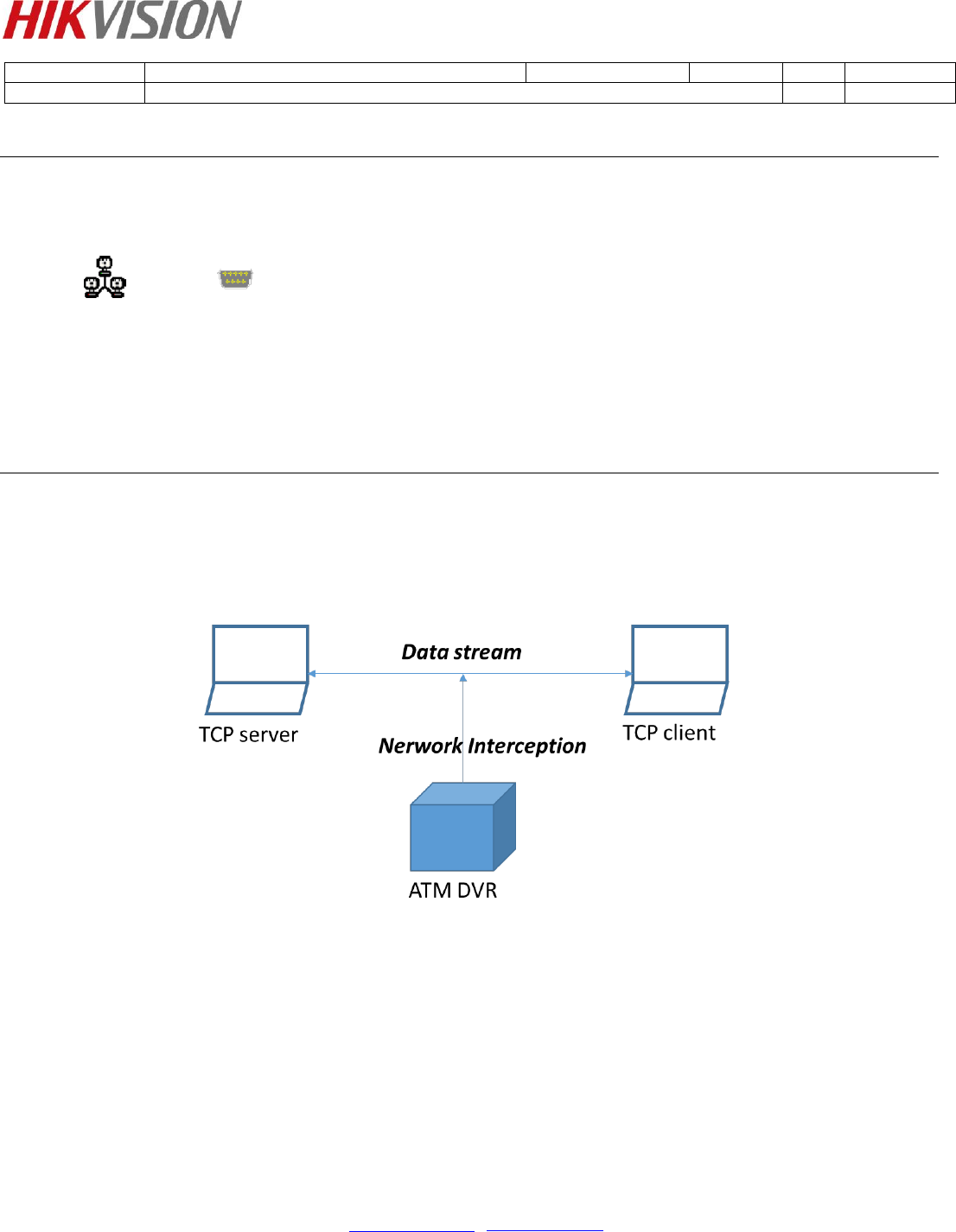

1.1 Network Topology

Network Topology

1.2 Switch configuration

1) Network cable connection

For example, use network cable to connect the first laptop（TCP server）with port1, then connect

the second laptop（TCP client）to port3, and connect ATM DVR to port2.

2) Switch configuration

Set the switch configuration below.

Summary of content (19 pages)

PAGE 1
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: 12/06/2019 1 of 15 Preparation Devices: Switch DS-3E1310P-E, ATM DVR DS-8104AHQI-K4 firmware V3.5.57. Bulid 181203 Software: NetAssist，Serial Port Debug Assistant NetAssist.exe 串口调试助手V2.2. exe In this case, we will test two work modes of ATM configuration, Network interception and Serial Port Interception. How to use ATM DVR 1. Network Interception 1.1 Network Topology Network Topology 1.
PAGE 2
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: 12/06/2019 2 of 15 1.3 Network Setting configuration 3) IP setting First, disable two PC wifi. Then, set the laptop’s IP address as showing in the picture below. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: support@hikvision.com • www.hikvision.
PAGE 3
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: Laptop 1(TCP Server) IP address Laptop 2(TCP Client) IP address © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: support@hikvision.com • www.hikvision.
PAGE 4
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: ATM DVR IP address Now that: TCP server IP 192.168.0.123-Port 1, TCP client IP 192.168.0.21-Port 3, ATM DVR IP 192.168.0.64-Port 2 © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: support@hikvision.com • www.hikvision.
PAGE 5
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: 12/06/2019 5 of 15 4) NetAssist software configuration Open NetAssist software on laptop 1(TCP Server), and set the configuration as below. Do the same job on laptop 2 as the picture below. After that, press Connect on laptop 1,then press Connect on laptop 2. Laptop 1(TCP Server) © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.
PAGE 6
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: Laptop 2(TCP Client) © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: support@hikvision.com • www.hikvision.
PAGE 7
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: 1.4 ATM DVR configuration 5) Set Network interception IP address as TCP Server IP. Save and reboot. Network Interception IP 6) Set ATM overlay information configuration. © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: support@hikvision.com • www.hikvision.
PAGE 8
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: Data packet: set start identifier AZ，and end identifier BY，ASCII format. Data Packet Trading Info—— © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: support@hikvision.com • www.hikvision.
PAGE 9
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: Card No: location Fixed Offset25, Length 6, Overlay Position 32 32 Location © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: support@hikvision.com • www.hikvision.
PAGE 10
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: Length © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: support@hikvision.com • www.hikvision.
PAGE 11
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: Overlay Position © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: support@hikvision.com • www.hikvision.
PAGE 12
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: 12/06/2019 12 of 15 Trade Account: location Fixed Offset58, Length 12, Overlay Position: 64 64 Serial No: location Fixed Offset92, Length 4, Overlay Position: 128 128 Trigger Channel: Set the trigger channel as showed in the picture below. Time delay means the time which overlay information will last. Overlaid Position：Set the position by custom Save the configuration and reboot.
PAGE 13
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: 12/06/2019 13 of 15 1.5 Sending database Sending data “AZ12345678901234567890123456789012345678901234567890123456789012345678901234567890 12345678901234567890BY” from TCP Server to TCP client. And you will see the overlay information on DVR local preview. TCP Server © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.
PAGE 14
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: TCP client © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: support@hikvision.com • www.hikvision.
PAGE 15
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: Overlay information Explanation © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: support@hikvision.com • www.hikvision.
PAGE 16
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: 12/06/2019 16 of 15 2. Serial Port Interception 2.1 Device topology 1) Connect the PC with ATM DVR through serial port cable, and open serial port debug assistant software, Check the RS232 setting and set COM 3, baud rate as show in the picture below. Device topology Serial Port debug assistant software © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.
PAGE 17
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: 12/06/2019 17 of 15 RS232 setting 2) In serial port Interception mode, the ATM configuration is the same with Network Interception Mode. 3) Before each test, reopen the serial button. 4) Sending data “AZ1234567890123456789012345678901234567890123456789012345678901234567890123 456789012345678901234567890BY” 5) And you will see the overlay information on DVR local preview. © Hangzhou Hikvision Digital Technology Co.,Ltd.
PAGE 18
Title: Product: How to use ATM DVR ATM DVR、 Siwtch Version: V2.0 Date: Page: © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: support@hikvision.com • www.hikvision.
PAGE 19
Title: Product: How to use ATM DVR ATM DVR、 Siwtch 版本 V1.0 V2.0 Version: 修订人陆翔陆翔 V2.0 Date: Page: 12/06/2019 19 of 15 修订记录 2019.10.15 增加串口侦听模式模式 2019.12.06 First Choice for Security Professionals HIKVISION Technical Support © Hangzhou Hikvision Digital Technology Co.,Ltd. All Rights Reserved. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China • Tel: +86-571-8807-5998 • Fax: +1 909-595-0788 E-Mail: support@hikvision.com • www.hikvision.
