5. After inserting the door station into the gang box, pull the device downwards to hook
the door station with the gang box.

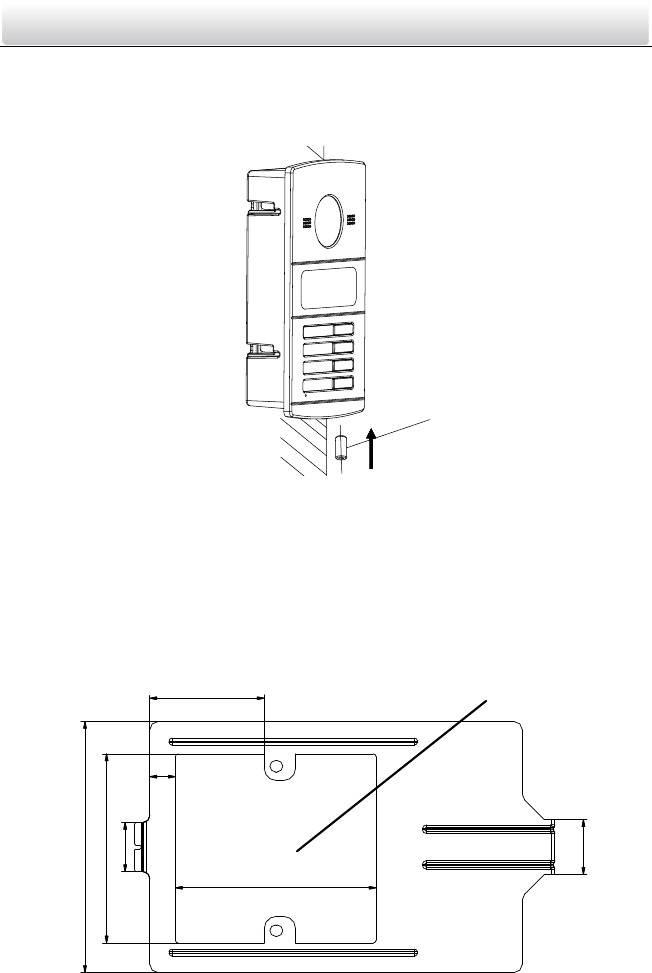

6. Secure the door station by inserting the fixing screw according to the direction of the
arrow of the figure below.
M4 Screw
Figure 3-4 Secure the Door Station (DS-KV8X02-IM)
3.2 Installation of DS-KV8102-XP
3.2.1 Installation Plate for DS-KV8102-XP
To install the DS-KV8102-XP model onto the wall, an installation plate and a gang box are
required.
20
69
18
41.48
9.3
72.7
Hollow Area
91.6
Figure 3-5 Dimensions of Installation Plate (DS-KV8102-XP)
