 The dimensions above are theoretical. The actual size can be slightly different from
the theoretical dimension.
3.1.2 Wall Mounting with Gang Box of DS-KV8X02-IM
Steps:
1. Take the gang box and screws from the packing box.
2. Chisel a hole in the wall for inserting the gang box. The size of the hole should be 90
(width) ×170 (length) × 38(depth) mm.

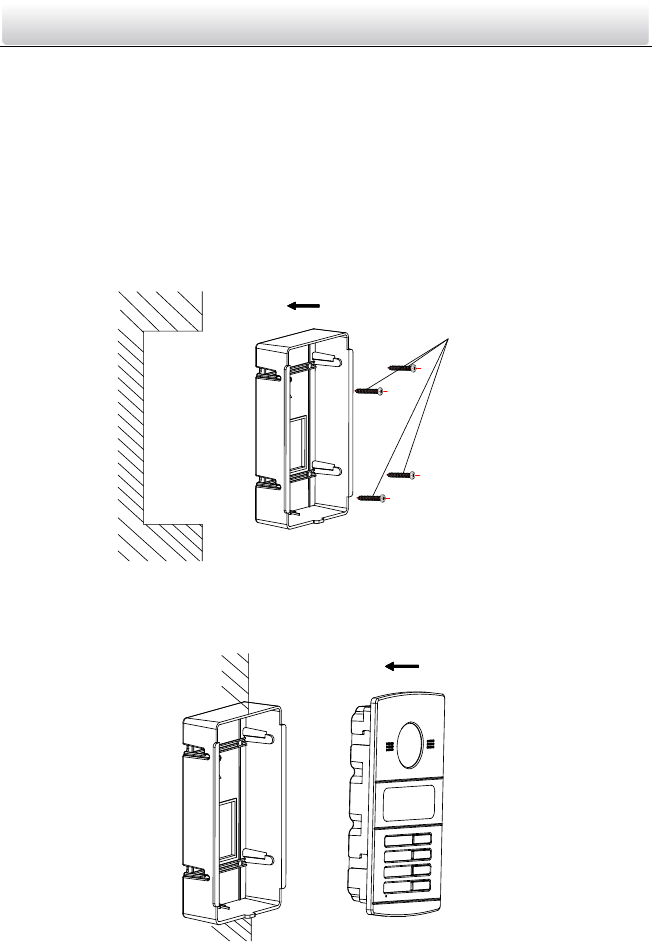

3. Insert the gang box into the hole and fix it with 4 PA4 screws, as shown in the figure
below.
PA4 Screws
Figure 3-2 Insert the Gang Box (DS-KV8X02-IM)
4. After fixing the gang box, install the door station into the gang box according to the
direction of the arrow, as shown in the figure below.
Figure 3-3 Insert the Door Station (DS-KV8X02-IM)
